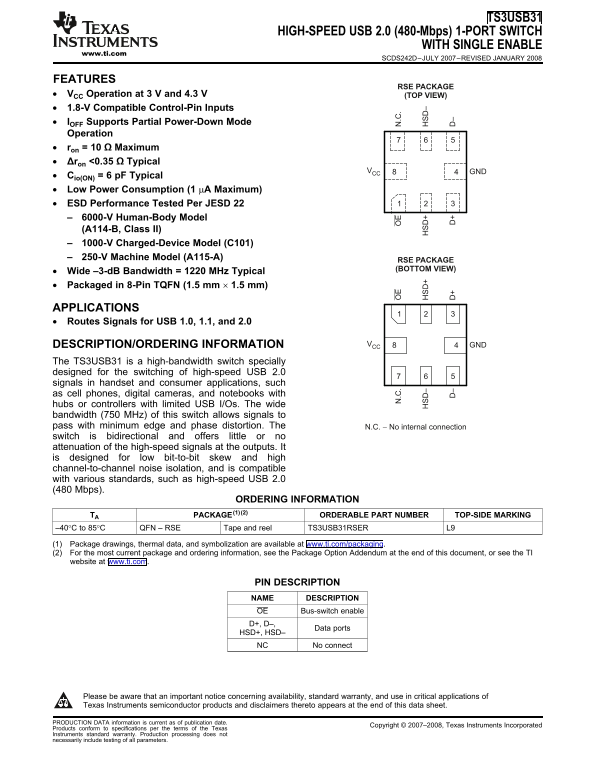

Texas Instruments TS3USB31 High-Speed USB 2.0 (480-Mbps) 1-Port Switch with Single Enable
Summary
This high-bandwidth USB 2.0 switch optimizes high-speed data routing for mobile and consumer electronics. Designed for low power consumption and minimal signal distortion, it features a single enable control and is compatible with USB 1.0, 1.1, and 2.0 standards.
Manual Details
| Brand | Texas Instruments |
|---|---|
| Pages | 17 |
| File Size | 860.90 KB |
| Published | June 15, 2026 |
6 views
Enter the captcha to get the download link:
Frequently Asked Questions
How do I enable the TS3USB31 switch?
Set the OE pin low to connect D+ and D- to HSD+ and HSD-; set OE high to disconnect.
Is the TS3USB31 compatible with USB 2.0?
Yes, it is specifically designed for high-speed USB 2.0 signals at 480 Mbps.
What is the maximum on-state resistance of the switch?
The maximum on-state resistance (r_on) is 10 ohms.
What ESD protection ratings does the TS3USB31 have?
It is rated for 6000-V HBM, 1000-V CDM, and 250-V MM per JESD 22.
