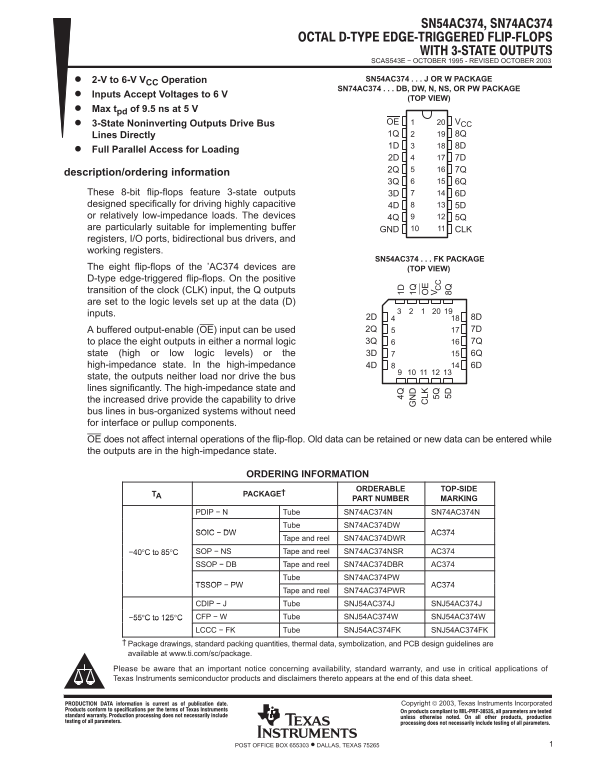

Texas Instruments SN54AC374 SN74AC374 Data Sheet Manual Description and Instructions
Summary
The SN74AC374 is an 8-bit D-type edge-triggered flip-flop designed for reliable digital system integration. Featuring advanced 3-state outputs, this device excels at acting as a buffer or bus driver, allowing connection to high-capacitance or low-impedance loads without external components. This technical manual provides engineers and hardware designers with comprehensive details, including operational parameters (2V–6V), various package options, absolute maximum ratings, and application guidelines crucial for implementing I/O ports and working registers in complex digital circuits.
Manual Details
| Brand | Texas Instruments |
|---|---|
| Pages | 18 |
| File Size | 716.03 KB |
| Published | June 06, 2026 |
Enter the captcha to get the download link:
Frequently Asked Questions
What is the primary function of the high-impedance state?
The high-impedance state ensures outputs neither load nor drive the bus lines significantly, allowing for bus-organized systems without extra components.
How must I set up the OE pin during power cycling?
To keep the high-impedance state when powering up or down, the OE input should be tied to Vcc through a pullup resistor.
What are these flip-flops best used for in circuit design?
They are particularly suitable for implementing buffer registers, I/O ports, bidirectional bus drivers, and working registers.
What is the maximum operating voltage range for this device?
The supply voltage range (Vcc) for the SN74AC374 is −0.5 V to 7 V, with input voltages accepting up to 6 V.
