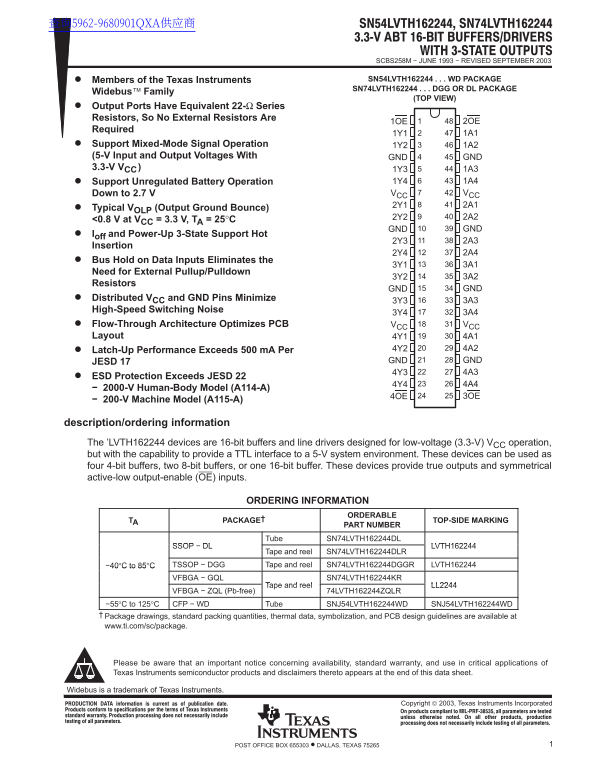

查询5962-9680901QXA供应商

SCBS258M − JUNE 1993 − REVISED SEPTEMBER 2003

Members of the Texas Instruments SN54LVTH162244 WD PACKAGE SN74LVTH162244 DGG OR DL PACKAGE

Widebus Family

(TOP VIEW)

Output Ports Have Equivalent 22-Ω Series Resistors, So No External Resistors Are

1OE 2OE

Required

Support Mixed-Mode Signal Operation 1Y2 1A2 (5-V Input and Output Voltages With GND GND 3.3-V VCC) 1Y3 1A3

Support Unregulated Battery Operation 1Y4 1A4 Down to 2.7 V VCC VCC 2Y1 2A1

Typical VOLP (Output Ground Bounce)

<0.8 V at VCC = 3.3 V, TA = 25°C

GND GND

Ioff and Power-Up 3-State Support Hot

Insertion

Bus Hold on Data Inputs Eliminates the

Need for External Pullup/Pulldown

Resistors

GND GND

Distributed VCC and GND Pins Minimize

High-Speed Switching Noise

Flow-Through Architecture Optimizes PCB VCC VCC Layout 4Y1 4A1

Latch-Up Performance Exceeds 500 m A Per 4Y2 4A2 JESD 17 GND GND 4Y3 4A3

ESD Protection Exceeds JESD 22

− 2000-V Human-Body Model (A114-A)

4OE 3OE

− 200-V Machine Model (A115-A)

description/ordering information The ’LVTH162244 devices are 16-bit buffers and line drivers designed for low-voltage (3.3-V) VCC operation, but with the capability to provide a TTL interface to a 5-V system environment. These devices can be used as four 4-bit buffers, two 8-bit buffers, or one 16-bit buffer. These devices provide true outputs and symmetrical active-low output-enable (OE) inputs.

ORDERING INFORMATION

ORDERABLE

TA PACKAGE† TOP-SIDE MARKING

PART NUMBER

Tube SN74LVTH162244DL

SSOP − DL LVTH162244

Tape and reel SN74LVTH162244DLR

−40°C to 85°C TSSOP − DGG Tape and reel SN74LVTH162244DGGR LVTH162244 VFBGA − GQL SN74LVTH162244KR

Tape and reel LL2244

VFBGA − ZQL (Pb-free) 74LVTH162244ZQLR

−55°C to 125°C CFP − WD Tube SNJ54LVTH162244WD SNJ54LVTH162244WD Package drawings, standard packing quantities, thermal data, symbolization, and PCB design guidelines are available at www.ti.com/sc/package.

Please be aware that an important notice concerning availability, standard warranty, and use in critical applications of Texas Instruments semiconductor products and disclaimers thereto appears at the end of this data sheet.

Widebus is a trademark of Texas Instruments.

3  )2!'*%)! )& $#-% *& !2 #4()$*%)! "*%- Copyright  2003, Texas Instruments Incorporated

1POST OFFICE BOX 655303 • DALLAS, TEXAS 75265

Page Summary Contents For Texas Instruments SN54LVTH162244, SN74LVTH162244 Data Handbook/Instructions Manual

Page 1 查询5962-9680901QXA供应商 SCBS258M − JUNE 1993 − REVISED SEPTEMBER 2003 Members of the Texas Instruments SN54LVTH162244 WD PACKAGE SN74LVTH162244 DGG OR DL PACKAGE Widebus Family (TOP VIEW) Output Ports H...
Page 2 SCBS258M − JUNE 1993 − REVISED SEPTEMBER 2003 description/ordering information (continued) The outputs, which are designed to source or sink up to 12 m A, include equivalent 22-Ω series resistors to r...
Page 3 SCBS258M − JUNE 1993 − REVISED SEPTEMBER 2003 logic diagram (positive logic) 1OE 3OE 2OE 4OE Pin numbers shown are for the DGG, DL, and WD packages. absolute maximum ratings over operating free-air te...
Page 4 SCBS258M − JUNE 1993 − REVISED SEPTEMBER 2003 recommended operating conditions (see Note 4) SN54LVTH162244 SN74LVTH162244 MIN MAX MIN MAX VCC Supply voltage 2.7 3.6 2.7 3.6 VIH High-level input voltag...
Page 5 SCBS258M − JUNE 1993 − REVISED SEPTEMBER 2003 switching characteristics over recommended operating free-air temperature range, CL = 50 p F (unless otherwise noted) (see Figure 1) SN54LVTH162244 SN74LV...
Page 6 SCBS258M − JUNE 1993 − REVISED SEPTEMBER 2003 PARAMETER MEASUREMENT INFORMATION 6 V S1 Open 500 Ω TEST S1 From Output Under Test GND t PLH/t PHL Open t PLZ/t PZL 6 V CL = 50 p F (see Note A) t PHZ/t P...
Page 7 PACKAGE OPTION ADDENDUM www.ti.com 4-Oct-2005 PACKAGING INFORMATION Orderable Device Status Package Package Pins Package Eco Plan Lead/Ball Finish MSL Peak Temp Type Drawing Qty 5962-9680901QXA ACTIVE...
Page 8 MECHANICAL DATA MCFP010B – JANUARY 1995 – REVISED NOVEMBER 1997 WD (R-GDFP-F**) CERAMIC DUAL FLATPACK 48 LEADS SHOWN NO. OF LEADS** A MAX A MIN NOTES: A. All linear dimensions are in inches (millimete...
Page 13 MECHANICAL DATA MSSO001C – JANUARY 1995 – REVISED DECEMBER 2001 DL (R-PDSO-G**) PLASTIC SMALL-OUTLINE PACKAGE 48 PINS SHOWN 0.420 (10,67) 0.395 (10,03) Gage Plane Seating Plane 0.110 (2,79) MAX 0.008 ...
Page 14 MECHANICAL DATA MTSS003D – JANUARY 1995 – REVISED JANUARY 1998 DGG (R-PDSO-G**) PLASTIC SMALL-OUTLINE PACKAGE 48 PINS SHOWN 6,00 7,90 0,15 NOM Gage Plane Seating Plane 1,20 MAX PINS ** DIM A MAX 12,60...
Page 15 IMPORTANT NOTICE Texas Instruments Incorporated and its subsidiaries (TI) reserve the right to make corrections, modifications, enhancements, improvements, and other changes to its products and servic...
