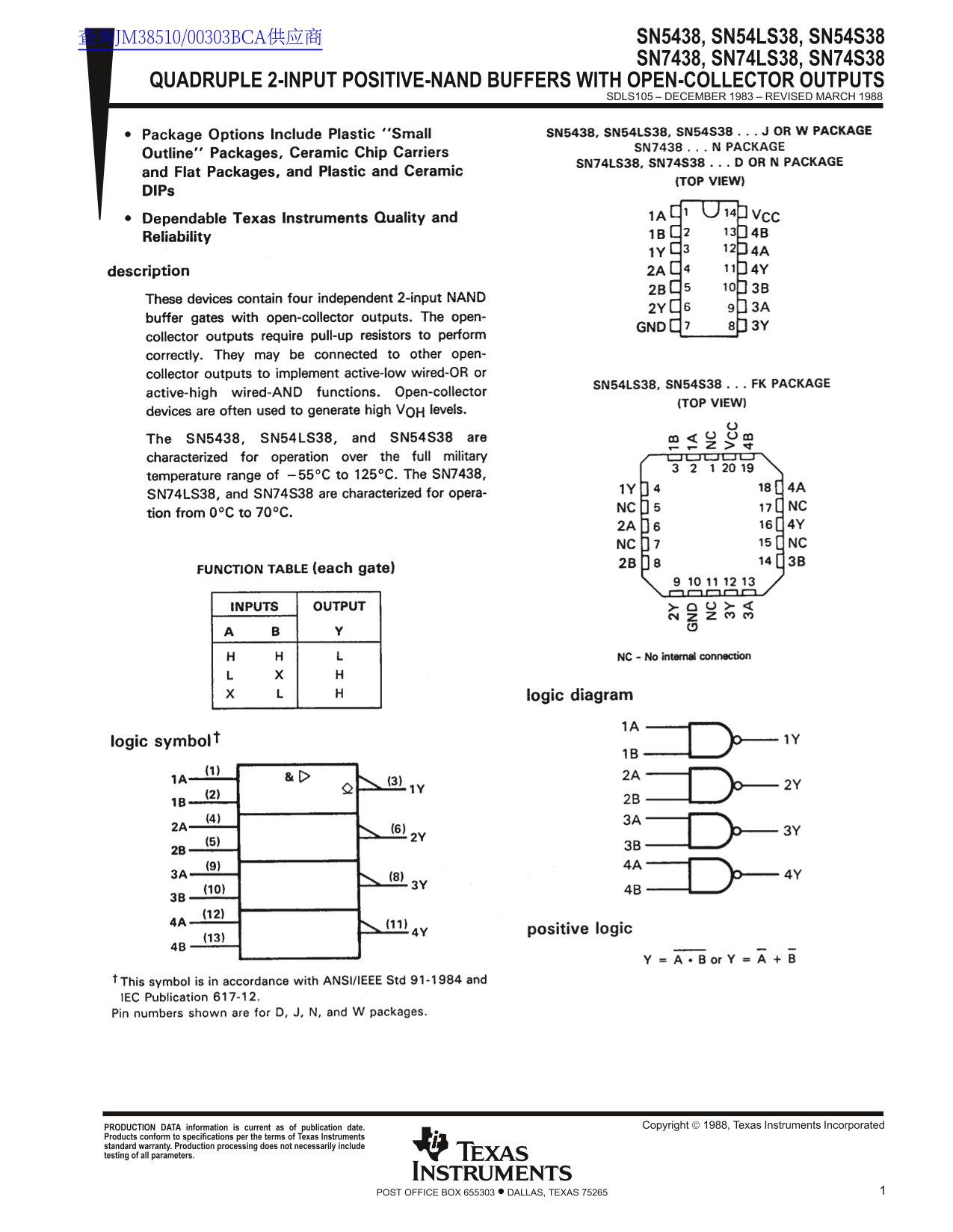

TEXAS INSTRUMENTS SN5438, SN54LS38, SN54S38 SN7438, SN74LS38, SN74S38 QUADRUPLE 2-INPUT POSITIVE-NAND BUFFERS WITH OPEN-COLLECTOR OUTPUTS
Summary
Essential component documentation covering the SN7438/SN5438 Quadruple 2-Input Positive-NAND Buffer logic chips. This detailed guide provides hardware engineers and circuit designers with comprehensive information on package options, obsolescence status, available pin formats (PDIP, SOIC, etc.), and revision history. Use this resource to ensure proper component selection for complex digital electronic designs while maintaining compliance standards.
Page 1 Text Content
查询JM38510/00303BCA供应商 SN5438, SN54LS38, SN54S38
SN7438, SN74LS38, SN74S38
QUADRUPLE 2-INPUT POSITIVE-NAND BUFFERS WITH OPEN-COLLECTOR OUTPUTS
SDLS105 – DECEMBER 1983 – REVISED MARCH 1988
Copyright 1988, Texas Instruments Incorporated PRODUCTION DATA information is current as of publication date.
Products conform to specifications per the terms of Texas Instruments standard warranty. Production processing does not necessarily include testing of all parameters.
1POST OFFICE BOX 655303 • DALLAS, TEXAS 75265
