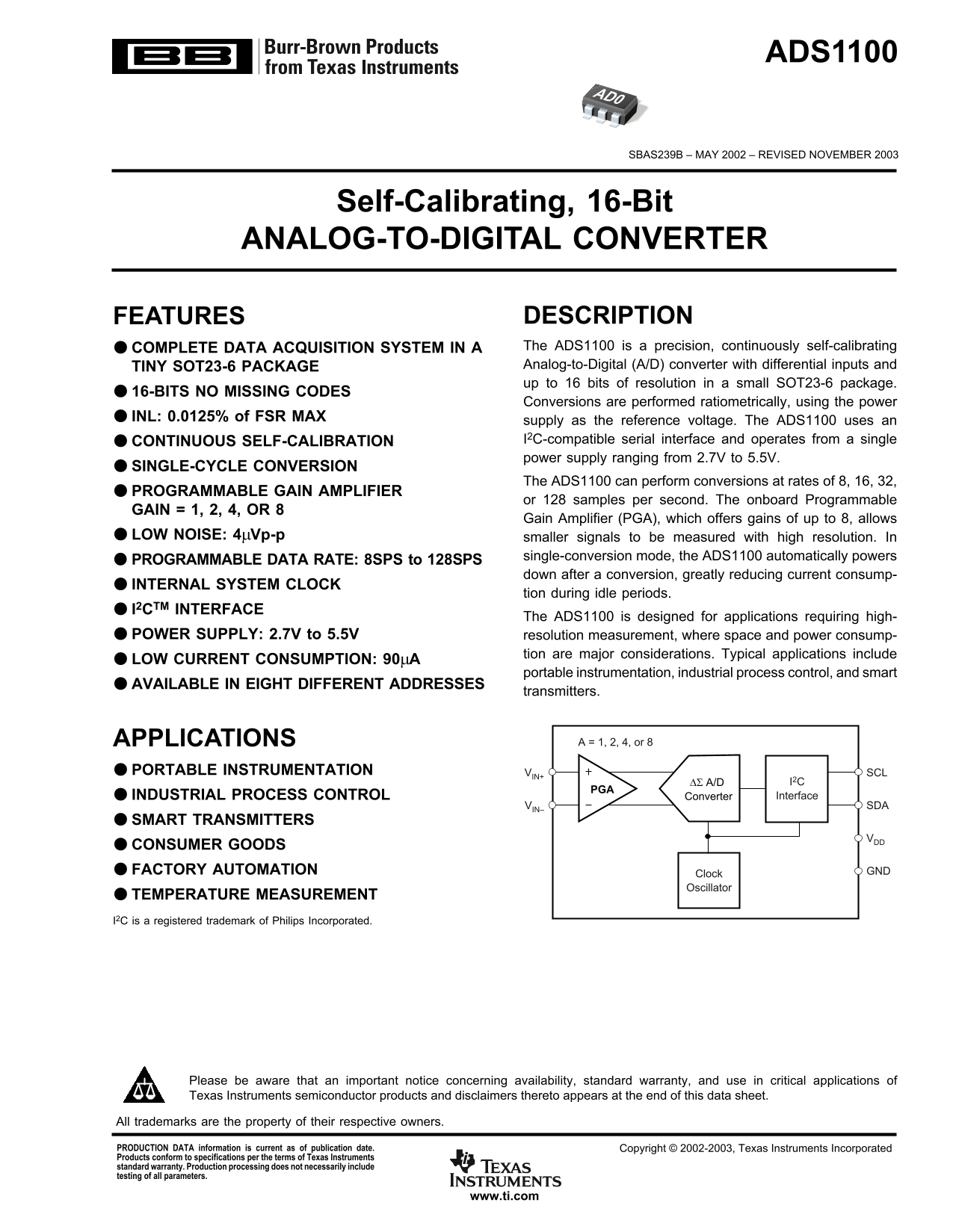

Texas Instruments ADS1100 Data Sheet User Guide
Summary
The ADS1100 is a high-precision, 16-bit Analog-to-Digital Converter (ADC) designed for demanding measurement applications. This technical summary details its continuous self-calibration features, low noise performance, and ultra-low power consumption powered by a reliable differential interface. Ideal for portable instrumentation, industrial process control, smart transmitters, and consumer goods monitoring, the ADS1100 provides high resolution in a tiny SOT23-6 package, ensuring accurate data acquisition even when space or battery life are major concerns.
Manual Details
| Brand | Texas Instruments |
|---|---|
| Pages | 21 |
| File Size | 493.71 KB |
| Published | July 15, 2026 |
Enter the captcha to get the download link:
Frequently Asked Questions
What communication interface does the ADS1100 use?
It utilizes an I²C-compatible serial interface, requiring SDA and SCL pins.
What is the maximum resolution available from this ADC?
The device offers up to 16 bits of resolution for data acquisition.
What is the acceptable operating voltage range for the ADS1100?
It operates efficiently using a single-supply voltage ranging from 2.7V to 5.5V.
How does the ADS1100 conserve power when performing conversions?
In single-conversion mode, it automatically powers down after completing a conversion cycle to reduce current consumption.
