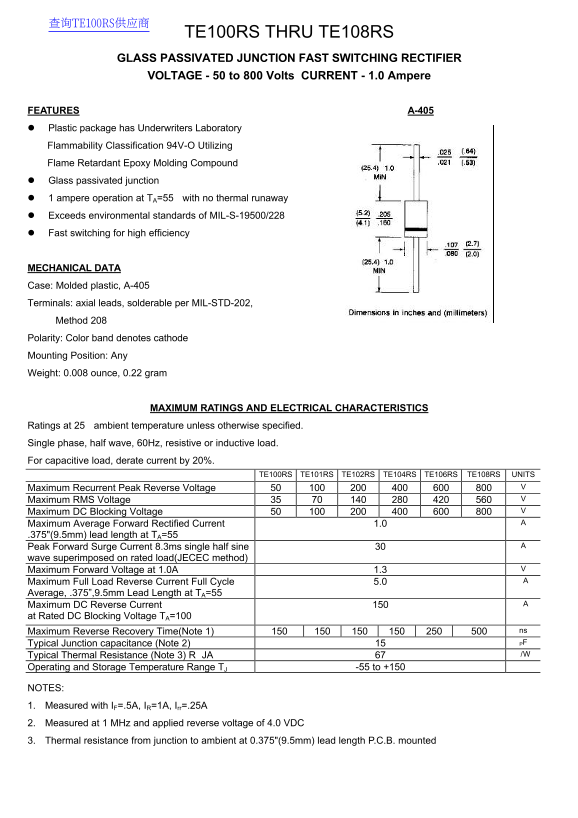

TE100RS THRU TE108RS GLASS PASSIVATED JUNCTION FAST SWITCHING RECTIFIER VOLTAGE - 50 to 800 Volts CURRENT - 1.0 Ampere
FEATURES A-405 l Plastic package has Underwriters Laboratory Flammability Classification 94V-O Utilizing Flame Retardant Epoxy Molding Compound l Glass passivated junction l 1 ampere operation at TA=55 with no thermal runaway l Exceeds environmental standards of MIL-S-19500/228 l Fast switching for high efficiency
MECHANICAL DATA Case: Molded plastic, A-405 Terminals: axial leads, solderable per MIL-STD-202, Method 208 Polarity: Color band denotes cathode Mounting Position: Any Weight: 0.008 ounce, 0.22 gram
MAXIMUM RATINGS AND ELECTRICAL CHARACTERISTICS
Ratings at 25 ambient temperature unless otherwise specified. Single phase, half wave, 60Hz, resistive or inductive load. For capacitive load, derate current by 20%. TE100RS TE101RS TE102RS TE104RS TE106RS TE108RS UNITS Maximum Recurrent Peak Reverse Voltage 50 100 200 400 600 800 V Maximum RMS Voltage 35 70 140 280 420 560 V Maximum DC Blocking Voltage 50 100 200 400 600 800 V Maximum Average Forward Rectified Current 1.0 A .375"(9.5mm) lead length at TA=55 Peak Forward Surge Current 8.3ms single half sine 30 A wave superimposed on rated load(JECEC method) Maximum Forward Voltage at 1.0A 1.3 V Maximum Full Load Reverse Current Full Cycle 5.0 A Average, .375”,9.5mm Lead Length at TA=55 Maximum DC Reverse Current 150 A at Rated DC Blocking Voltage TA=100 Maximum Reverse Recovery Time(Note 1) 150 150 150 150 250 500 ns Typical Junction capacitance (Note 2) 15 PF Typical Thermal Resistance (Note 3) R JA 67 /W Operating and Storage Temperature Range TJ -55 to +150
NOTES: 1. Measured with IF=.5A, IR=1A, Irr=.25A 2. Measured at 1 MHz and applied reverse voltage of 4.0 VDC 3. Thermal resistance from junction to ambient at 0.375"(9.5mm) lead length P.C.B. mounted
