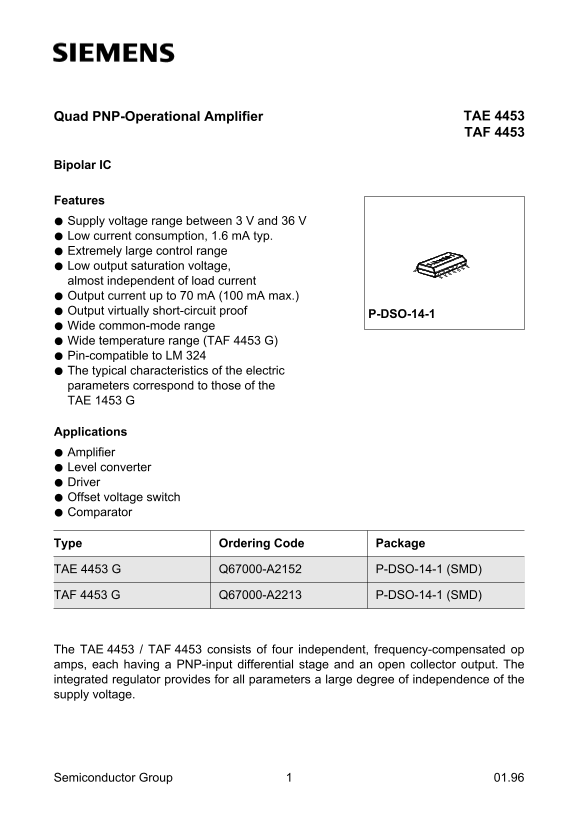

Quad PNP-Operational Amplifier TAE 4453 TAF 4453
Bipolar IC
Features Supply voltage range between 3 V and 36 Low current consumption, 1.6 m A typ. Extremely large control range Low output saturation voltage, almost independent of load current Output current up to 70 m A (100 m A max.) Output virtually short-circuit proof
P-DSO-14-1
Wide common-mode range Wide temperature range (TAF 4453 G) Pin-compatible to LM The typical characteristics of the electric parameters correspond to those of the TAE
Applications Amplifier Level converter Driver Offset voltage switch Comparator
Type Ordering Code Package
TAE 4453 G Q67000-A2152 P-DSO-14-1 (SMD)
TAF 4453 G Q67000-A2213 P-DSO-14-1 (SMD)
The TAE 4453 / TAF 4453 consists of four independent, frequency-compensated op amps, each having a PNP-input differential stage and an open collector output. The integrated regulator provides for all parameters a large degree of independence of the supply voltage.
