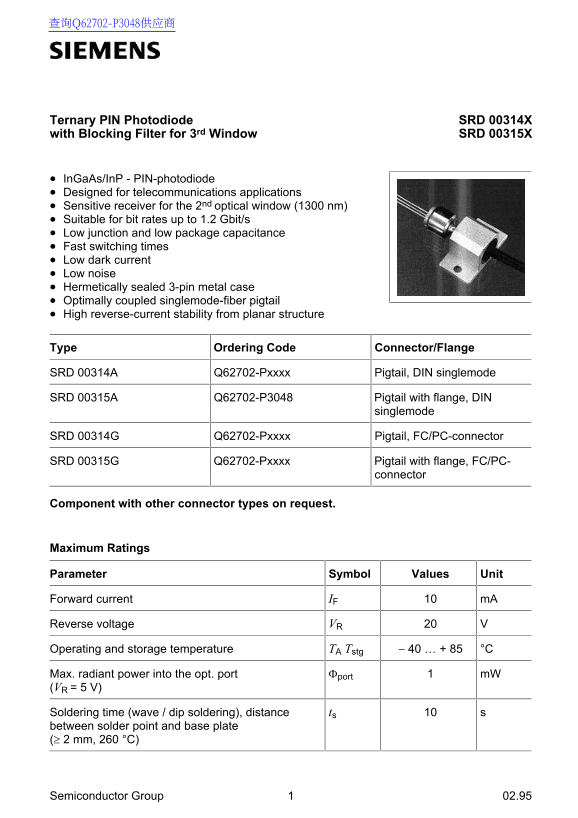

Ternary PIN Photodiode SRD 00314X with Blocking Filter for 3rd Window SRD 00315X
In Ga As/In P - PIN-photodiode Designed for telecommunications applications Sensitive receiver for the 2nd optical window (1300 nm) Suitable for bit rates up to 1.2 Gbit/s Low junction and low package capacitance Fast switching times Low dark current Low noise Hermetically sealed 3-pin metal case Optimally coupled singlemode-fiber pigtail High reverse-current stability from planar structure
Type Ordering Code Connector/Flange
SRD 00314A Q62702-Pxxxx Pigtail, DIN singlemode
SRD 00315A Q62702-P3048 Pigtail with flange, DIN
singlemode
SRD 00314G Q62702-Pxxxx Pigtail, FC/PC-connector
SRD 00315G Q62702-Pxxxx Pigtail with flange, FC/PC-
connector
Component with other connector types on request.
Maximum Ratings
Parameter Symbol Values Unit
Forward current IF m A
Reverse voltage VR
Operating and storage temperature TA Tstg − 40 … + 85 °C
Max. radiant power into the opt. port Φport m W (VR = 5 V)
Soldering time (wave / dip soldering), distance ts between solder point and base plate (≥ 2 mm, 260 °C)
Semiconductor Group 02.95
