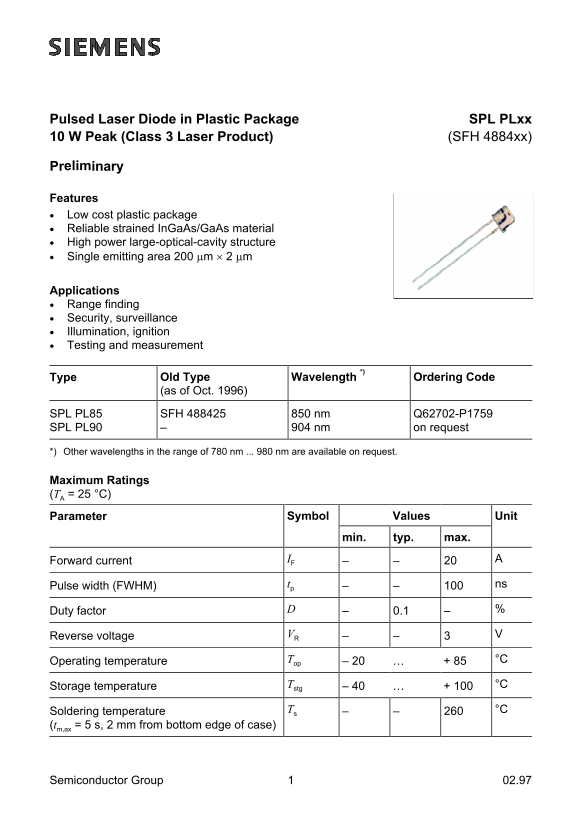

Pulsed Laser Diode in Plastic Package SPL PLxx 10 W Peak (Class 3 Laser Product) (SFH 4884xx)
Preliminary
Features • Low cost plastic package • Reliable strained In Ga As/Ga As material • High power large-optical-cavity structure • Single emitting area 200 µm × 2 µm
Applications • Range finding • Security, surveillance • Illumination, ignition • Testing and measurement
Type Old Type Wavelength *) Ordering Code (as of Oct. 1996)
SPL PL85 SFH 488425 850 nm Q62702-P1759 SPL PL90 904 nm on request
Other wavelengths in the range of 780 nm ... 980 nm are available on request.
Maximum Ratings (TA = 25 °C)
Parameter Symbol Values Unit
min. typ. max.
Forward current IF
Pulse width (FWHM) tp ns
Duty factor 0.1
Reverse voltage VR
Operating temperature – 20 + 85 °C
Storage temperature Tstg – 40 + 100 °C
Soldering temperature Ts °C
(tm,ax = 5 s, 2 mm from bottom edge of case)
