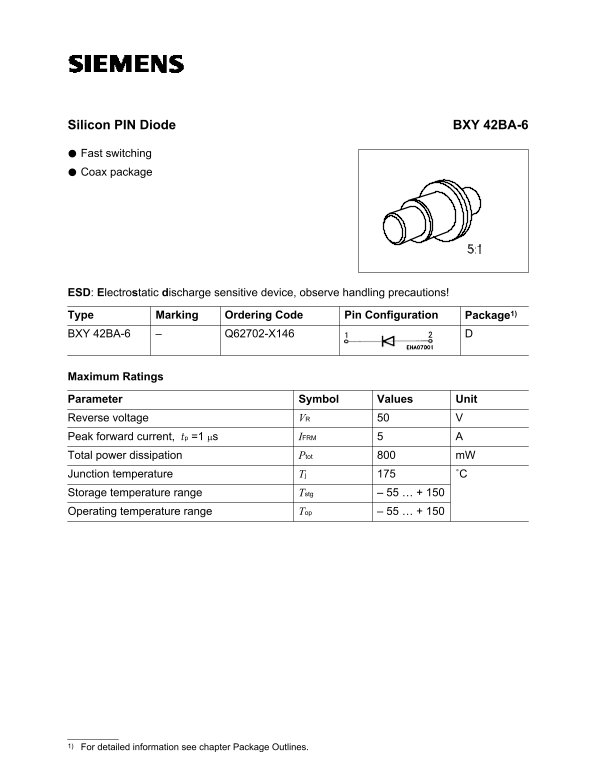

Silicon PIN Diode BXY 42BA-6
Fast switching Coax package
ESD: Electrostatic discharge sensitive device, observe handling precautions!
Type Ordering Code Marking Package1)Pin Configuration BXY 42BA-6 Q62702-X146–
Maximum Ratings
Parameter Symbol Values Unit Reverse voltage VR Peak forward current, tp =1 µs IFRM
Total power dissipation Ptot m W
Junction temperature Tj ˚C
Storage temperature range Tstg – 55 … + 150
Operating temperature range – 55 … + 150
1) For detailed information see chapter Package Outlines.
