Siemens BC 807 BC808 Data Sheet
Summary
These datasheets provide comprehensive technical specifications for BC 807 and BC 808 NPN Silicon Transistors, essential components for amplifying and switching circuits. The manual details maximum ratings, electrical characteristics, breakdown voltages, and diverse packaging options (e.g., SOT-23). This resource is critical for electronics engineers and circuit designers who require precise performance data to select the optimal transistor for general low to medium current applications.
Page 1 Text Content

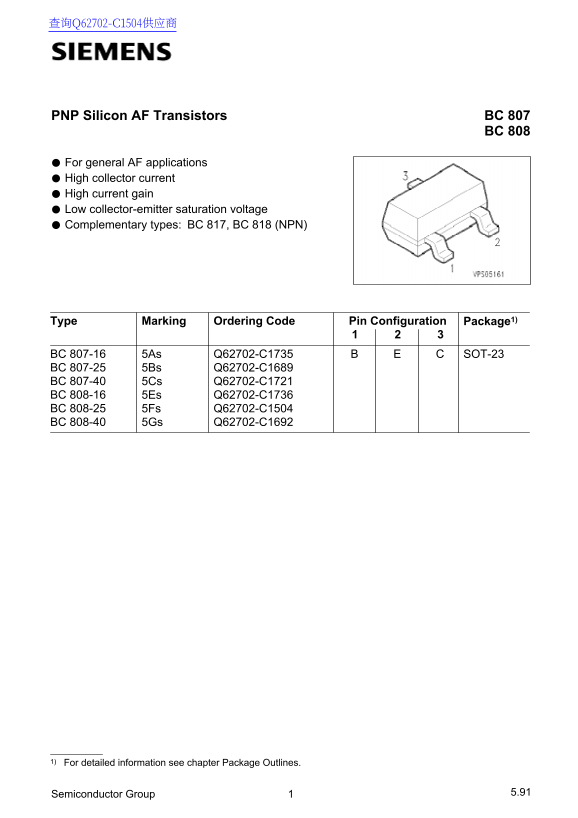

PNP Silicon AF Transistors BC 807
BC 808
For general AF applications High collector current High current gain Low collector-emitter saturation voltage Complementary types: BC 817, BC 818 (NPN)
Type Ordering Code Marking Package1)Pin Configuration
BC 807-16 5As Q62702-C1735 SOT-23B BC 807-25 5Bs Q62702-C1689 BC 807-40 5Cs Q62702-C1721 BC 808-16 5Es Q62702-C1736 BC 808-25 5Fs Q62702-C1504 BC 808-40 5Gs Q62702-C1692
1) For detailed information see chapter Package Outlines.
Semiconductor Group 5.91
Page Summary Contents For Siemens BC 807 BC808 Data Sheet
Manual Details
| Brand | Siemens |
|---|---|
| Pages | 6 |
| File Size | 136.93 KB |
| Published | June 01, 2026 |
Enter the captcha to get the download link:
Frequently Asked Questions
What is the maximum collector current for these transistors?
The maximum continuous collector current (IC) is 500 mA.
What are the permissible operating voltages?
VCE (Collector-emitter voltage) can handle a maximum of 45 V for BC 807 and 25 V for BC 808.
Do these transistors come in complementary pairs?
Yes, complementary types include BC 817 and BC 818 (NPN).
What is the thermal resistance if mounted on an epoxy PCB?
The junction-to-ambient thermal resistance (Rth JA) recommended value is ≤ 28 °C/W.
