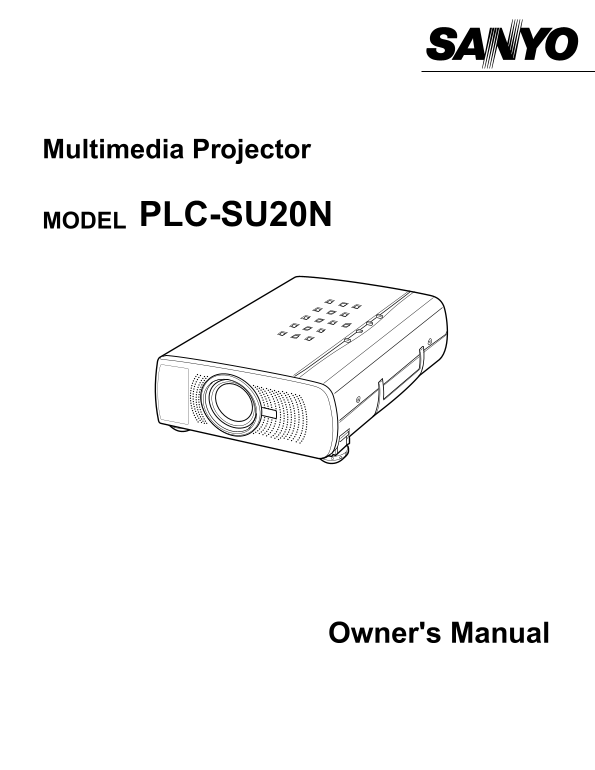

Multimedia Projector
MODEL PLC-SU20N
Owner's Manual
Page Summary Contents For Sanyo PLCSU20N Projector User Guide
Page 1
Multimedia Projector MODEL PLC-SU20N Owner's Manual
Page 2
INFORMATION TO THE USER NOTE : This equipment has been tested and found to comply with the limits for a Class A digital device, pursuant to Part 15 of FCC Rules. These limits are designed to provide r...
Page 3
IMPORTANT SAFETY INSTRUCTIONS All the safety and operating instructions should be read before d. If the projector does not operate normally by following the the product is operated. operating instruct...
Page 4
TABLE OF CONTENTS FEATURES AND DESIGN COMPUTER MODE SELECTING COMPUTER MODE SELECTING COMPUTER SYSTEM PREPARATION AUTOMATIC MULTISCANNING SYSTEM COMPATIBLE COMPUTER SPECIFICATIONS NAME OF EACH PART OF...
Page 5
FEATURES AND DESIGN This Multimedia Projector is designed with the most advanced technology for portability, durability, and ease of use. The projector utilizes built-in multimedia features, a palette...
Page 6
PREPARATION NAME OF EACH PART OF THE PROJECTOR FRONT OF THE CABINET PROJECTION LENS LENS COVER CARRY HANDLE SPEAKER (Monaural)INFRARED REMOTE RECEIVER BACK OF THE CABINET EXHAUST VENT HOT AIR EXHAUSTE...
Page 7
PREPARATION SETTING-UP THE PROJECTOR POSITIONING THE PROJECTOR ●This projector is designed to project on a flat projection surface. ●The projector can be focused from 4.6’(1.4m) ~ 35.4’(10.8m). ●Refer...
Page 8
PREPARATION CONNECTING THE AC POWER CORD This projector uses nominal input voltages of 100-120 V AC. The projector automatically selects the correct input voltage. It is designed to work with single-p...
Page 9
PREPARATION MOVING THE PROJECTOR Use the Carry Handle when moving the Projector. When moving the projector, replace the lens cover and retract feet to prevent damage to the lens and cabinet. When this...
Page 10
CONNECTING THE PROJECTOR TERMINALS OF THE PROJECTOR VIDEO INPUT JACKS-VIDEO INPUT JACK Connect the S-VIDEO output Connect the video output from from the video equipment to this the video equipment to ...
Page 11
CONNECTING THE PROJECTOR CONNECTING TO THE VIDEO EQUIPMENT Video Source (example) Video Cassette Recorder Video Disc Player Video / Audio Output S-VIDEO Output Used cables for connection • VIDEO CABLE...
Page 12
CONNECTING THE PROJECTOR CONNECTING TO THE COMPUTER To connect to the computer, refer to the figure below. Used cables for connection • VGA CABLE • CONTROL CABLE FOR PS/2 PORT • CONTROL CABLE FOR SERI...
Page 13
CONNECTING THE PROJECTOR S-VIDEO AUDIO R-AUDIO-L(MONO) VIDEO IN COMPUTER IN MONITOR OUT CONTROL PORT COMPUTER MONITOR CONTROL AUDIO AUDIO IN OUT PORT IN OUT ◆MAC ADAPTER (Not supplied) Set the switche...
Page 14
BEFORE OPERATION OPERATION OF THE REMOTE CONTROL VIDEO BUTTON POWER ON-OFF BUTTON Left Side Used to select VIDEO VIDEOCOMPUTER ON-OFF Used to turn the projector on source. (P29) or off. (P19) FOCUSZOO...
Page 15
BEFORE OPERATION Operating Range VIDEOCOMPUTER ON-OFF Point the remote control toward the projector (the Remote Receiver) ZOOM BUTTON whenever pressing the buttons. FOCUSZOOM VOLUME VOLUME BUTTON Used...
Page 16
BEFORE OPERATION TOP CONTROLS AND INDICATORS ZOOM BUTTONS Used to select zoom adjust. (P20) POWER ON–OFF BUTTON FOCUS BUTTONS Used to turn the projector on or off. (P19) Used to select focus adjust. Z...
Page 17
BEFORE OPERATION OPERATING ON-SCREEN MENU HOW TO OPERATE ON-SCREEN MENU You can control and adjust this projector through the WIRELESS REMOTE CONTROL ON-SCREEN MENU. Refer to the following pages to PO...
Page 18
BEFORE OPERATION MENU BAR MENU BAR IN COMPUTER MODE Press MENU BUTTON while in Computer mode. MODE MENU AUTO IMAGE MENU PC ADJUST MENU SETTING MENU Used to select Used to adjust Fine Used to adjust th...
Page 19
BASIC OPERATION TURNING ON / OFF THE PROJECTOR TURNING OF THE PROJECTOR Complete the peripheral connections (with Computer, VCR, etc.) before turning on the projector. (Refer to "CONNECTING TO TH...
Page 20
BASIC OPERATION ADJUSTING THE IMAGE The message disappears after 4 seconds. Focus The message disappears after 4 seconds. KEYSTONE ADJUSTMENT Press the KEYSTONE ▲/▼ button on the Remote Control Unit K...
Page 21
BASIC OPERATION NO SHOW FUNCTION Press the NO SHOW button on the Remote Control Unit to black out the image. This function is cancelled when the NO SHOW button is No show pressed again or any other fu...
Page 22
COMPUTER MODE SELECTING COMPUTER MODE DIRECT OPERATION MODE button Select COMPUTER mode by pressing the MODE button on the Top COMPUTER Control or the COMPUTER button on the Remote Control Unit. VIDEO...
Page 23
COMPUTER MODE COMPATIBLE COMPUTER SPECIFICATIONS Basically this projector can accept the signal from all computers with the V, H-Frequency mentioned below and less than 135 MHz of Dot Clock. ON-SCREEN...
Page 24
COMPUTER MODE PC ADJUSTMENT This Projector can automatically tune to the display signals from most personal computers currently distributed. However, some computers employ the special signal formats w...
Page 25
Total lines The number of the total vertical lines. Adjust the number to match the image of your personal computer. Total dots The number of the total dots in one horizontal period. Adjust the number ...
Page 26
COMPUTER MODE ADJUST PICTURE IMAGE MANUALLY Press the MENU button and the ON-SCREEN MENU will appear. Press the POINT LEFT/RIGHT buttons to select IMAGE and press the SELECT button. Another dialog box...
Page 27
COMPUTER MODE AUTO IMAGE FUNCTION The Auto Image function is provided to automatically adjust Fine sync., Total dots, and Picture Position for most computers. Press the MENU button and the ON-SCREEN M...
Page 28
COMPUTER MODE PICTURE SCREEN ADJUSTMENT This projector has a picture screen resize function, which enables you to display the desirable image size. Press the MENU button and the ON-SCREEN MENU will ap...
Page 29
VIDEO MODE SELECTING VIDEO MODE DIRECT OPERATION MODE button Select VIDEO mode by pressing the MODE button on the Top COMPUTER Control or the VIDEO button on the Remote Control Unit. VIDEO MENU OPERAT...
Page 30
VIDEO MODE PICTURE IMAGE ADJUSTMENT ADJUSTING THE PICTURE IMAGE Press the MENU button and the ON-SCREEN MENU will appear. Press the POINT LEFT/RIGHT buttons to select IMAGE and press the SELECT button...
Page 31
SETTING SETTING MENU Press the MENU button and the ON-SCREEN MENU will appear. Press the POINT LEFT/RIGHT buttons to select SETTING and press the SELECT button. Another dialog box SETTING Menu will ap...
Page 32
APPENDIX OPERATING WIRELESS MOUSE The Wireless Remote Control Unit is not only able to operate the projector but also usable as a wireless mouse for most Personal Computers. The POINT buttons and the ...
Page 33
APPENDIX MAINTENANCE TEMPERATURE WARNING INDICATOR The TEMPERATURE WARNING Indicator flashes red when the internal temperature of the projector exceeds the normal temperature. The Indicator stops flas...
Page 34
APPENDIX LAMP REPLACEMENT INDICATOR When the life of the Lamp of this projector draws to an end, the LAMP REPLACEMENT indicator lights yellow. When the image becomes dark or the color of the image bec...
Page 35
APPENDIX TROUBLESHOOTING Before calling your dealer or service station for assistance, check the matters below once again. 1. Make sure you have connected the projector to your equipment a s described...
Page 36
APPENDIX Problem: Try these Solution ●Check the batteries. Remote Control ●Check the ALL-OFF switch on the Remote Control Unit is set to “ON.”. Units does not work. ●Make sure nothing is between the R...
Page 37
TECHNICAL SPECIFICATIONS Projector Type Multi-media Projector Dimensions (W x H x D) 9.41" x 3.54" x 12.72" (239mm x 90mm x 323mm) (not including Adjustable Feet) Net Weight 8.6 lbs (3....
Page 38
OPTIONAL PARTS The parts listed below are optionally supplied. When ordering those parts, give the name and the Type No. of it to the sales dealer. ●Control Cable for Serial Port Type No. POA-MCSRL ●C...
Page 39
SANYO INDUSTRIAL VIDEO LCD PROJECTOR LIMITED WARRANTY OBLIGATIONS In order to obtain warranty service, the product must be delivered to and picked up from and Authorized Sanyo Factory Service Center a...
