Conductive polymer chip tantalum capacitors featuring ultra-low ESR and large capacitance in a small P case. Ideal for general electronic devices, this data sheet details specifications, dimensions, and performance standards for the TCTO series.

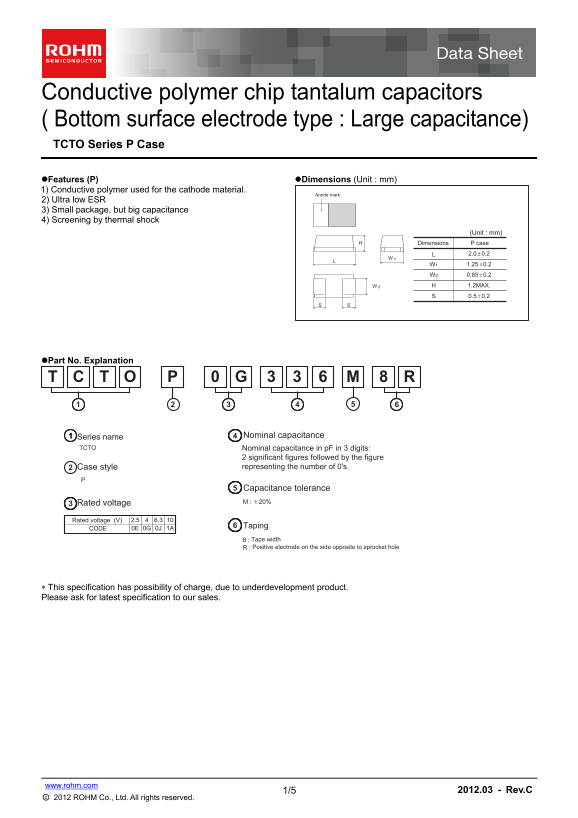

Page 1 Text Content
Conductive polymer chip tantalum capacitors ( Bottom surface electrode type : Large capacitance) TCTO Series P Case Features (P) Dimensions (Unit : mm) 1) Conductive polymer used for the cathode material.
Anode mark
2) Ultra low ESR 3) Small package, but big capacitance 4) Screening by thermal shock
(Unit : mm) Dimensions P case 2.0 0.2+− W1 1.25 0.2+− W2 0.85 0.2+− 1.2MAX. 0.5 0.2+−
Part No. Explanation
6C M0 RT
Series name Nominal capacitance
TCTO Nominal capacitance in p F in 3 digits:
2 significant figures followed by the figure Case style representing the number of 0's.
Capacitance tolerance +− 20%M :
Rated voltage
Rated voltage (V) 2.5 6.3
Taping
CODE 0E 0G 0J 1A
8 : Tape width R : Positive electrode on the side opposite to sprocket hole
This specification has possibility of charge, due to underdevelopment product. Please ask for latest specification to our sales.
www.rohm.com
1/5 2012.03 - Rev.C
○c 2012 ROHM Co., Ltd. All rights reserved.
Page Summary Contents For ROHM TCTO series P case User's Guide and Manual
Manual Details
| Brand | ROHM |
|---|---|
| Pages | 6 |
| File Size | 179.25 KB |
| Published | June 15, 2026 |
Enter the captcha to get the download link:
Frequently Asked Questions
What is the cathode material used in the TCTO Series capacitors?
The cathode material is conductive polymer.
What are the key features of the TCTO P Case capacitors?
Key features include ultra-low ESR, a small package with large capacitance, and screening by thermal shock.
What is the operating temperature range for these capacitors?
The operating temperature range is -55°C to +105°C.
How is polarity indicated on the capacitor?
Polarity is indicated by a bar on the anode side.
