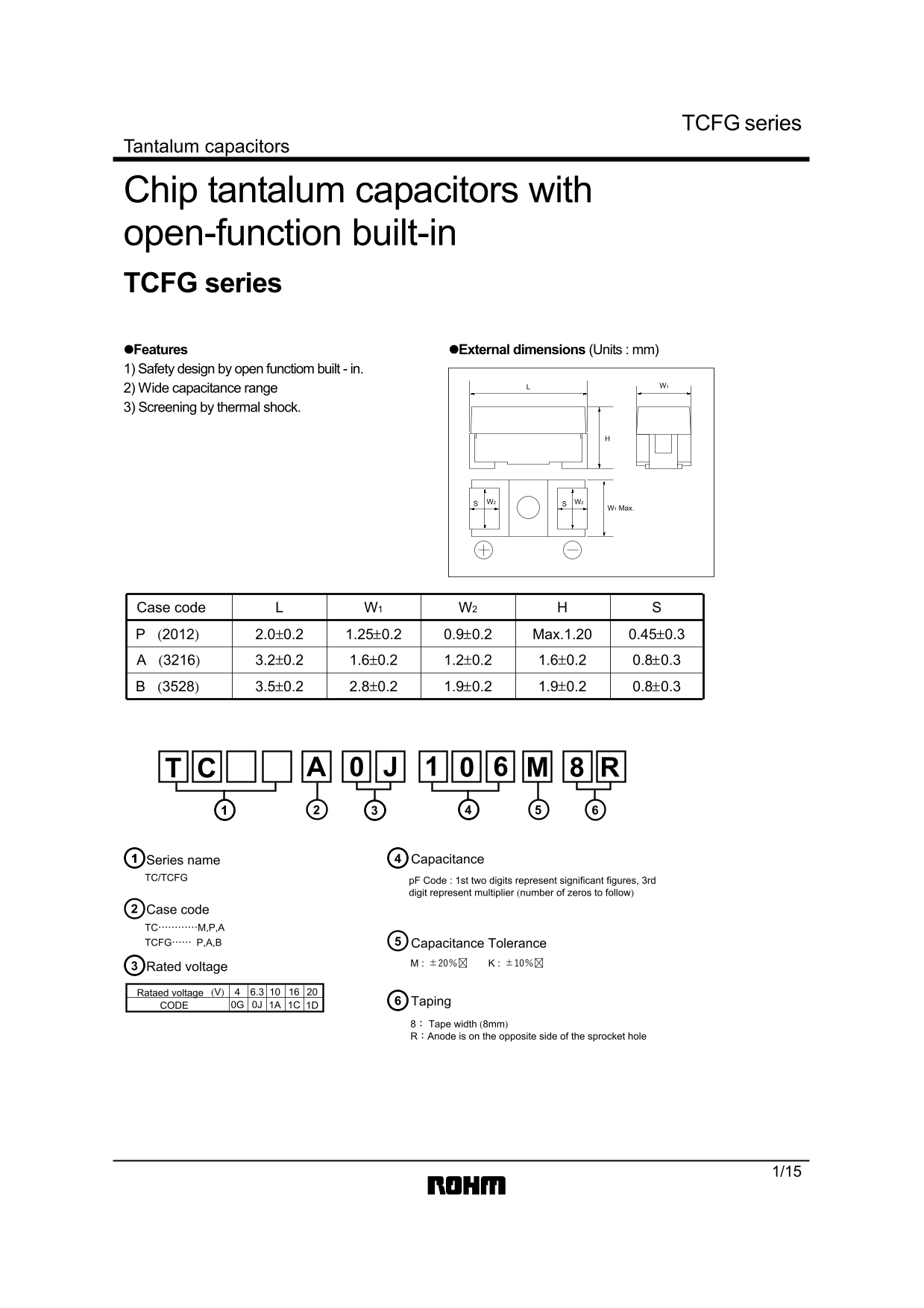

Page 1 Text Content
TCFG series Tantalum capacitors
Chip tantalum capacitors with open-function built-in TCFG series !Features !External dimensions (Units : mm) 1) Safety design by open functiom built - in.
2) Wide capacitance range 3) Screening by thermal shock.
W2 SS W2
W1 Max.
Case code W1 W2
P (2012) 2.0 0.2 1.25 0.2 +− 0.9 0.2 +− Max.1.20 0.45 0.3+− +−
Series name Capacitance
TC/TCFG p F Code : 1st two digits represent significant figures, 3rd
digit represent multiplier (number of zeros to follow)
Case code TC…………M,P,A TCFG…… P,A,B Capacitance Tolerance
Rated voltage
Rataed voltage (V) 6.3
0G 0J 1A 1C Taping
CODE 1D
8： Tape width (8mm) R：Anode is on the opposite side of the sprocket hole
