ROHM DTA115EE Series Data Manual

Summary

The DTA115E series datasheet details PNP digital transistors with built-in bias resistors, designed for easy inverter circuit configuration. Suitable for consumer electronics, this component handles up to -100mA and -50V, offering simplified design and RoHS compliance across various SMT packages.

📄 Preview PAGE OF 10

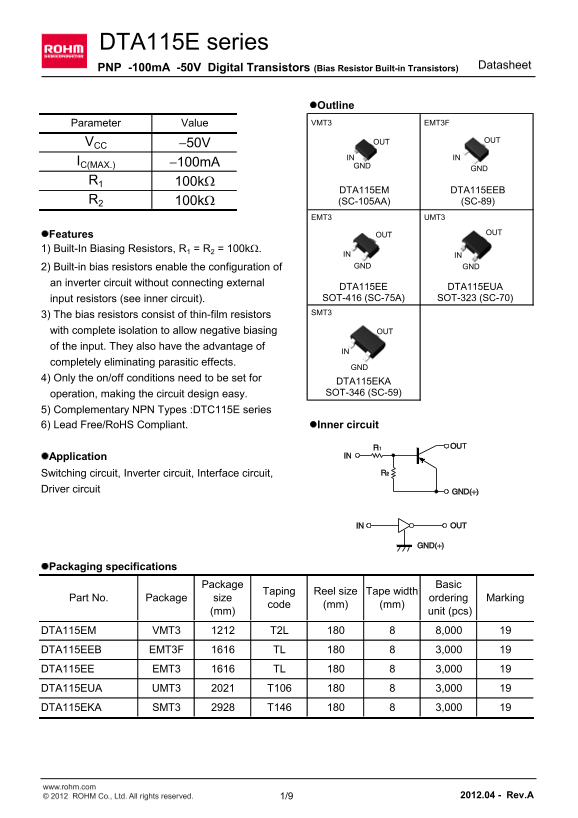

Page 1 Text Content

DTA115E series

Datasheet

PNP -100m A -50V Digital Transistors (Bias Resistor Built-in Transistors)

l Outline Parameter Value VMT3 EMT3F

VCC OUT OUT

IN IN

IC(MAX.) -100m A

DTA115EM DTA115EEB

R2 100k W (SC-105AA) (SC-89)

EMT3 UMT3

l Features OUT

1) Built-In Biasing Resistors, R1 = R2 = 100k W.

IN IN 2) Built-in bias resistors enable the configuration of GND GND

an inverter circuit without connecting external

DTA115EE DTA115EUA input resistors (see inner circuit). SOT-416 (SC-75A) SOT-323 (SC-70) SMT3

3) The bias resistors consist of thin-film resistors with complete isolation to allow negative biasing OUT of the input. They also have the advantage of

completely eliminating parasitic effects.

4) Only the on/off conditions need to be set for

DTA115EKA operation, making the circuit design easy. SOT-346 (SC-59)

5) Complementary NPN Types :DTC115E series

6) Lead Free/Ro HS Compliant. l Inner circuit

l Application Switching circuit, Inverter circuit, Interface circuit, Driver circuit

l Packaging specifications

Package Basic

Taping Reel size Tape width

Part No. Package size ordering Marking

code (mm) (mm)

(mm) unit (pcs)

DTA115EM VMT3 T2L 8,000 DTA115EEB EMT3F TL 3,000 DTA115EE EMT3 TL 3,000 DTA115EUA UMT3 T106 3,000 DTA115EKA SMT3 T146 3,000

www.rohm.com © 2012 ROHM Co., Ltd. All rights reserved. 1/9 2012.04 - Rev.A

Page Summary Contents For ROHM DTA115EE Series Data Manual

Page 1 DTA115E series Datasheet PNP -100m A -50V Digital Transistors (Bias Resistor Built-in Transistors) l Outline Parameter Value VMT3 EMT3F VCC OUT OUT IN IN IC(MAX.) -100m A DTA115EM DTA115EEB R2 100k W ...
Page 2 Data Sheet DTA115E series l Absolute maximum ratings (Ta = 25C) Parameter Symbol Values Unit Supply voltage VCC -50 Input voltage VIN -40 to +10 Output current IO -20 m A *1 Collector current IC(MAX....
Page 3 Data Sheet DTA115E series IN [V l Electrical characteristic curves(Ta = 25°C) Fig.1 Input voltage vs. output current Fig.2 Output current vs. input voltage (ON characteristics) (OFF characteristics) O...
Page 4 Data Sheet DTA115E series l Electrical characteristic curves(Ta = 25°C) Fig.5 Output voltage vs. output current OUTPUT CURRENT : IO [A] www.rohm.com © 2012 ROHM Co., Ltd. All rights reserved. 4/9 2012...
Page 5 Data Sheet DTA115E series l Dimensions (Unit : mm) Patterm of terminal position areas MILIMETERS INCHES MIN MAX MIN MAX 0.45 0.55 0.018 0.022 HE 1.10 1.30 0.043 0.051 Lp 0.20 0.40 0.008 MILIMETERS INC...
Page 6 Data Sheet DTA115E series l Dimensions (Unit : mm) EMT3F Patterm of terminal position areas MILIMETERS INCHES MIN MAX MIN MAX 0.65 0.85 HE 1.50 1.70 0.059 0.067 Lp 0.35 0.55 0.014 0.022 MILIMETERS INC...
Page 7 Data Sheet DTA115E series l Dimensions (Unit : mm) Patterm of terminal position areas MILIMETERS INCHES MIN MAX MIN MAX 0.60 0.80 0.024 0.031 HE 1.40 1.80 0.055 0.071 L1 0.10 0.004 Lp 0.15 0.006 MILIM...
Page 8 Data Sheet DTA115E series l Dimensions (Unit : mm) Patterm of terminal position areas MILIMETERS INCHES MIN MAX MIN MAX 0.80 1.00 0.031 0.039 HE 2.00 2.20 0.079 0.087 L1 0.20 0.50 0.008 0.02 Lp 0.25 0...
Page 9 Data Sheet DTA115E series l Dimensions (Unit : mm) Patterm of terminal position areas MILIMETERS INCHES MIN MAX MIN MAX 1.00 1.30 0.051 HE 2.60 3.00 0.102 0.118 L1 0.30 0.60 0.012 0.024 Lp 0.40 0.70 0...
Page 10 Notice No copying or reproduction of this document, in part or in whole, is permitted without the consent of ROHM Co.,Ltd. The content specified herein is subject to change for improvement without not...

Manual Details

Brand ROHM
Pages 10
File Size 742.94 KB
Published June 15, 2026
4 views

Enter the captcha to get the download link:

captcha

Frequently Asked Questions

What is the maximum collector current for the DTA115E series?

The maximum collector current (I_C(MAX.)) is -100mA.

Does this transistor have built-in bias resistors?

Yes, it has built-in biasing resistors R1 = R2 = 100kΩ.

What are the typical applications for this device?

Typical applications include switching, inverter, interface, and driver circuits.

What is the complementary NPN type for this PNP transistor?

The complementary NPN type is the DTC115E series.

What is the absolute maximum power dissipation for the DTA115EUA?

The absolute maximum power dissipation (P_D) for the DTA115EUA is 200 mW.
