ROHM LM-2035 Series Data Sheet
Summary
LM-2035 series are 5x7 dot matrix LED display modules in bright red, green, and dual-color red/green variants. Features 2.0mm circular emitters in a 17.78x12.7x4.2mm black package. Targets electronics engineers for status indicators, character displays, and graphic readouts in industrial panels, consumer electronics, and instrumentation.

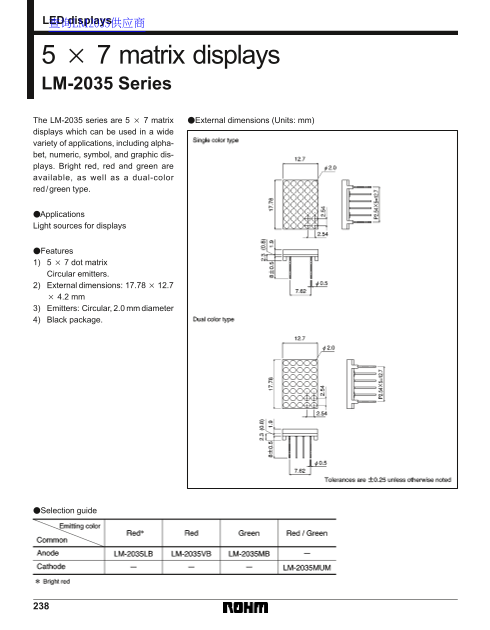

Page 1 Text Content
LED displays 查询LM2035供应商
5 7 matrix displays LM-2035 Series The LM-2035 series are 5 7 matrix External dimensions (Units: mm) displays which can be used in a wide variety of applications, including alpha- bet, numeric, symbol, and graphic dis- plays. Bright red, red and green are available, as well as a dual-color red/green type.
Applications Light sources for displays
Features 1) 5 7 dot matrix Circular emitters. 2) External dimensions: 17.78 12.7 4.2 mm 3) Emitters: Circular, 2.0 mm diameter 4) Black package.
Selection guide
Page Summary Contents For ROHM LM-2035 Series Data Sheet
Manual Details
| Brand | ROHM |
|---|---|
| Pages | 3 |
| File Size | 60.90 KB |
| Published | June 17, 2026 |
Enter the captcha to get the download link:
Frequently Asked Questions
What colors are available for LM-2035 displays?
Bright red, red and green, and a dual-color red/green type are available.
What are the external dimensions of the LM-2035?
The external dimensions are 17.78 × 12.7 × 4.2 mm.
What applications can the LM-2035 5x7 matrix display be used for?
It can be used for alphabet, numeric, symbol, and graphic displays.
