ROHM DTA113ZE Series Data Sheet
Summary
The DTA113Z series are high-performance Digital PNP Transistors designed for complex switching, inverter, and driver circuit applications. These transistors feature built-in bias resistors and thin-film isolation, simplifying circuit design by allowing easy configuration—such as setting up an inverter—without external input or biasing components, while also minimizing parasitic effects. This datasheet provides comprehensive details on electrical characteristics, thermal management, and package dimensions for reliability in modern electronic equipment builds.

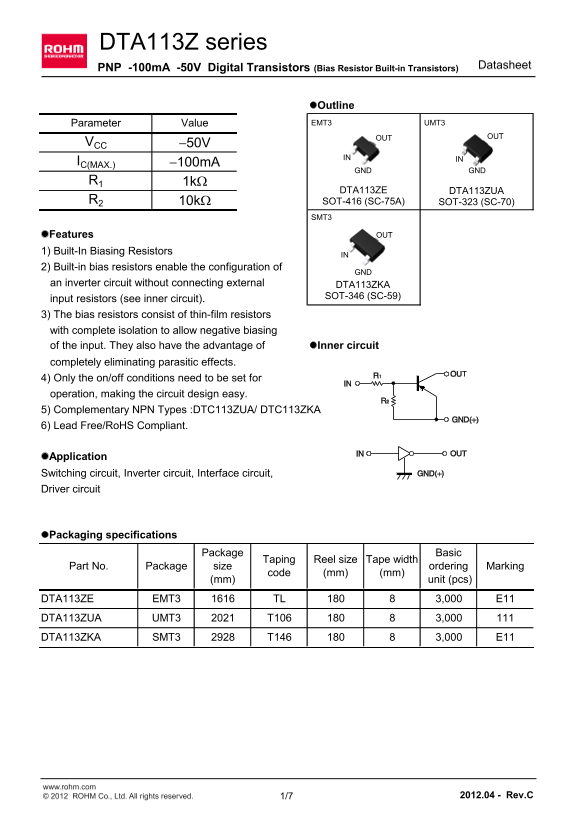

Page 1 Text Content
DTA113Z series
Datasheet
PNP -100m A -50V Digital Transistors (Bias Resistor Built-in Transistors)
l Outline Parameter Value EMT3 UMT3
OUT OUT
VCC -50V
IN IN
IC(MAX.) -100m A
GND GND
DTA113ZE DTA113ZUA
R2 10k W SOT-416 (SC-75A) SOT-323 (SC-70)
l Features OUT
1) Built-In Biasing Resistors
2) Built-in bias resistors enable the configuration of
an inverter circuit without connecting external DTA113ZKA
SOT-346 (SC-59)
input resistors (see inner circuit). 3) The bias resistors consist of thin-film resistors with complete isolation to allow negative biasing of the input. They also have the advantage of l Inner circuit completely eliminating parasitic effects. 4) Only the on/off conditions need to be set for operation, making the circuit design easy. 5) Complementary NPN Types :DTC113ZUA/ DTC113ZKA 6) Lead Free/Ro HS Compliant.
l Application Switching circuit, Inverter circuit, Interface circuit, Driver circuit
l Packaging specifications
Package Basic
Taping Reel size Tape width
Part No. Package size ordering Marking
code (mm) (mm)
(mm) unit (pcs)
DTA113ZE EMT3 TL 3,000 E118 DTA113ZUA UMT3 T106 3,000 DTA113ZKA SMT3 T146 3,000 E11
www.rohm.com © 2012 ROHM Co., Ltd. All rights reserved. 1/7 2012.04 - Rev.C
Page Summary Contents For ROHM DTA113ZE Series Data Sheet
Manual Details
| Brand | ROHM |
|---|---|
| Pages | 8 |
| File Size | 581.78 KB |
| Published | June 02, 2026 |
Enter the captcha to get the download link:
Frequently Asked Questions
What are the main benefits of using this DTA113Z series transistor?
Its primary benefits include built-in biasing resistors, which allow for configuration of an inverter circuit without external input resistors.
What is the recommended operating temperature range for this product?
The junction temperature (Tj) range is specified from -55 to +150°C.
Does this device require specific safety considerations when used in equipment?
Yes, implement safety measures like derating or fire control, as ROHM recommends careful implementation for physical injury protection.
What are the different package types available for purchase?
The available package types listed are EMT3, UMT3, and SMT3.
