ROHM DTA014YUB Series Data Sheet

Summary

These PNP Digital Transistors are designed for high-efficiency switching, inverter, and driver circuit applications. Featuring built-in biasing resistors, they dramatically simplify complex PCB layouts by eliminating the need for external input components and minimizing parasitic effects. The manual provides comprehensive technical specifications, absolute maximum ratings, electrical curves (I(on)/I(off)), and package dimensions. It is an essential resource for electronics designers building reliable automation, communication, and consumer electronic devices.

📄 Preview PAGE OF 8

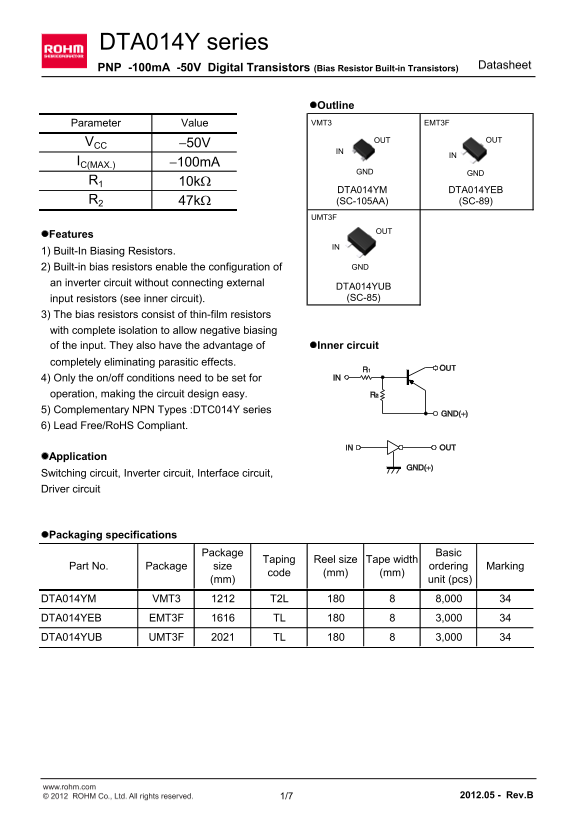

Page 1 Text Content

DTA014Y series

Datasheet

PNP -100m A -50V Digital Transistors (Bias Resistor Built-in Transistors)

l Outline Parameter Value VMT3 EMT3F

OUT OUT

VCC -50V

IC(MAX.) -100m A

GND GND

DTA014YM DTA014YEB

R2 47k W (SC-105AA) (SC-89)

UMT3F

l Features

1) Built-In Biasing Resistors.

2) Built-in bias resistors enable the configuration of GND

an inverter circuit without connecting external

DTA014YUB input resistors (see inner circuit). (SC-85)

3) The bias resistors consist of thin-film resistors with complete isolation to allow negative biasing

of the input. They also have the advantage of l Inner circuit

completely eliminating parasitic effects. 4) Only the on/off conditions need to be set for operation, making the circuit design easy. 5) Complementary NPN Types :DTC014Y series 6) Lead Free/Ro HS Compliant.

l Application Switching circuit, Inverter circuit, Interface circuit, Driver circuit

l Packaging specifications

Package Basic

Taping Reel size Tape width

Part No. Package size ordering Marking

code (mm) (mm)

(mm) unit (pcs)

DTA014YM VMT3 T2L 8,000 DTA014YEB EMT3F TL 3,000 DTA014YUB UMT3F TL 3,000

www.rohm.com © 2012 ROHM Co., Ltd. All rights reserved. 1/7 2012.05 - Rev.B

Page Summary Contents For ROHM DTA014YUB Series Data Sheet

Page 1 DTA014Y series Datasheet PNP -100m A -50V Digital Transistors (Bias Resistor Built-in Transistors) l Outline Parameter Value VMT3 EMT3F OUT OUT VCC -50V IC(MAX.) -100m A GND GND DTA014YM DTA014YEB R2 ...
Page 2 Data Sheet DTA014Y series l Absolute maximum ratings (Ta = 25°C) Parameter Symbol Values Unit Supply voltage VCC -50 Input voltage VIN -40 to +6 Output current IO -70 m A *1 Collector current IC(MAX.)...
Page 3 Data Sheet DTA014Y series IN [V l Electrical characteristic curves(Ta = 25°C) Fig.1 Input voltage vs. output current Fig.2 Output current vs. input voltage (ON characteristics) (OFF characteristics) -...
Page 4 Data Sheet DTA014Y series l Electrical characteristic curves(Ta = 25°C) Fig.5 Output voltage vs. output current -1 IO/II=10 Ta=125ºC Ta=75ºC -0.01 Ta=25ºC Ta= -40ºC OUTPUT CURRENT : IO [m A] www.rohm....
Page 5 Data Sheet DTA014Y series l Dimensions (Unit : mm) Patterm of terminal position areas MILIMETERS INCHES MIN MAX MIN MAX 0.45 0.55 0.018 0.022 HE 1.10 1.30 0.043 0.051 Lp 0.20 0.40 0.008 MILIMETERS INC...
Page 6 Data Sheet DTA014Y series l Dimensions (Unit : mm) EMT3F Patterm of terminal position areas MILIMETERS INCHES MIN MAX MIN MAX 0.65 0.85 HE 1.50 1.70 0.059 0.067 Lp 0.35 0.55 0.014 0.022 MILIMETERS INC...
Page 7 Data Sheet DTA014Y series l Dimensions (Unit : mm) UMT3F Patterm of terminal position areas MILIMETERS INCHES MIN MAX MIN MAX 0.85 1.05 0.033 0.041 HE 2.00 2.20 0.079 0.087 Lp 0.43 0.63 0.017 0.025 MI...
Page 8 Notice No copying or reproduction of this document, in part or in whole, is permitted without the consent of ROHM Co.,Ltd. The content specified herein is subject to change for improvement without not...

Manual Details

Brand ROHM
Pages 8
File Size 525.58 KB
Published June 20, 2026
4 views

Enter the captcha to get the download link:

captcha

Frequently Asked Questions

How can this transistor be used in an inverter circuit?

The transistors have built-in bias resistors, enabling configuration of an inverter circuit without connecting external input resistors.

What are the maximum ratings for general operation?

The collector current is rated at -100 mA (I_C(MAX)), and the power dissipation varies between 150 mW and 200 mW depending on the specific model.

What types of circuitry are these components suitable for?

They are designed for use in switching circuits, inverter circuits, interface circuits, and driver circuits.

Are these parts intended for life-critical equipment?

No. They should not be used with systems requiring an extremely high level of reliability, such as medical instruments or aerospace machinery.
