ROHM SPR-325 SERIES DATA SHEET
Summary
These SPR-325 Series LEDs are high-reliability, two-color red and green emitters available in a compact φ3.2 mm form factor designed for direct mounting onto printed circuit boards. Ideal for engineers and product designers requiring precise indicators or signaling components across diverse industrial applications. The accompanying manual provides comprehensive technical documentation, including selection guides, absolute maximum ratings, directional patterns, and detailed electrical and optical characteristics necessary for accurate system integration and optimal performance planning.

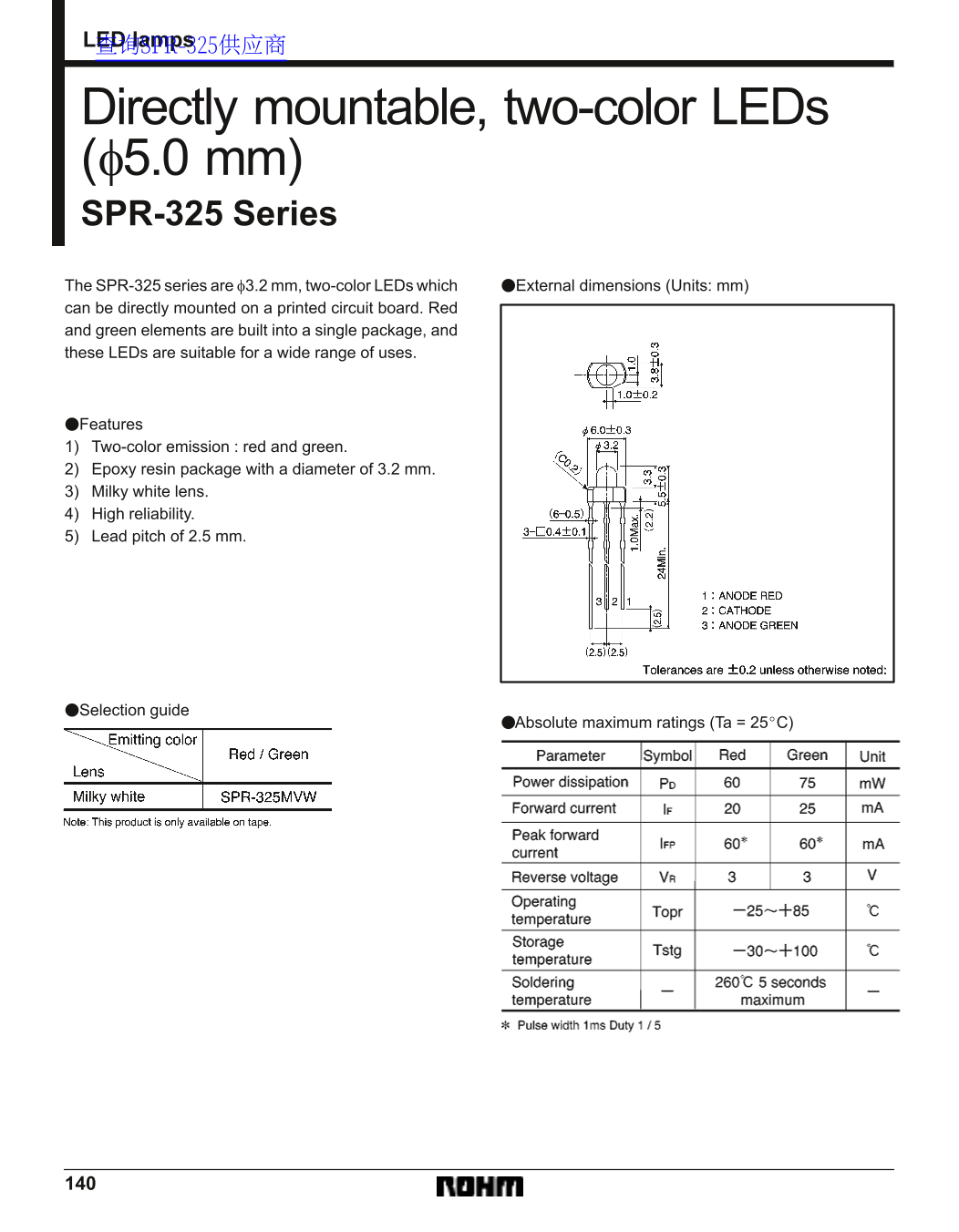

Page 1 Text Content
LED lamps 查询SPR-325供应商
Directly mountable, two-color LEDs (φ5.0 mm) SPR-325 Series The SPR-325 series are φ3.2 mm, two-color LEDs which External dimensions (Units: mm) can be directly mounted on a printed circuit board. Red and green elements are built into a single package, and these LEDs are suitable for a wide range of uses.
Features 1) Two-color emission : red and green. 2) Epoxy resin package with a diameter of 3.2 mm. 3) Milky white lens. 4) High reliability. 5) Lead pitch of 2.5 mm.
Selection guide
Absolute maximum ratings (Ta = 25C)
Page Summary Contents For ROHM SPR-325 SERIES DATA SHEET
Manual Details
| Brand | ROHM |
|---|---|
| Pages | 3 |
| File Size | 74.33 KB |
| Published | July 12, 2026 |
Enter the captcha to get the download link:
Frequently Asked Questions
How can the SPR-325 LEDs be mounted?
These LEDs are directly mountable on a printed circuit board.
What colors do the SPR-325 series emit?
They offer two-color emission, specifically red and green elements.
What is the size and package type of the LED?
They feature an epoxy resin package with a diameter of 3.2 mm.
Are these LEDs suitable for varied applications?
Yes, they are built into a single package and are suitable for a wide range of uses.
