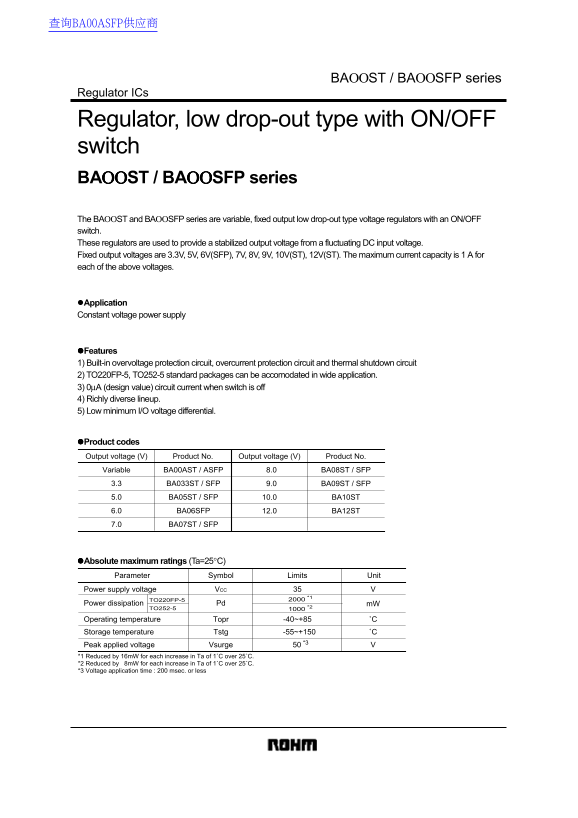

BAΟΟST / BAΟΟSFP series
Regulator ICs
Regulator, low drop-out type with ON/OFF switch BAΟΟST / BAΟΟSFP series The BAΟΟST and BAΟΟSFP series are variable, fixed output low drop-out type voltage regulators with an ON/OFF switch. These regulators are used to provide a stabilized output voltage from a fluctuating DC input voltage. Fixed output voltages are 3.3V, 5V, 6V(SFP), 7V, 8V, 9V, 10V(ST), 12V(ST). The maximum current capacity is 1 A for each of the above voltages.
!Application Constant voltage power supply
!Features 1) Built-in overvoltage protection circuit, overcurrent protection circuit and thermal shutdown circuit 2) TO220FP-5, TO252-5 standard packages can be accomodated in wide application. 3) 0µA (design value) circuit current when switch is off 4) Richly diverse lineup. 5) Low minimum I/O voltage differential.
!Product codes Output voltage (V) Product No. Output voltage (V) Product No.
Variable BA00AST / ASFP 8.0 BA08ST / SFP BA033ST / SFP 9.0 BA09ST / SFP3.3
BA05ST / SFP 10.0 BA10ST5.0
BA06SFP 12.0 BA12ST6.0
7.0 BA07ST / SFP
!Absolute maximum ratings (Ta=25°C)
Parameter Symbol Limits Unit
Power supply voltage VCC
TO220FP-5
Power dissipation Pd m W
TO252-5 *2
Operating temperature Topr -40~+85 ˚C Storage temperature Tstg -55~+150 ˚C
Peak applied voltage Vsurge *1 Reduced by 16m W for each increase in Ta of 1˚C over 25˚C. *2 Reduced by 8m W for each increase in Ta of 1˚C over 25˚C. *3 Voltage application time : 200 msec. or less
