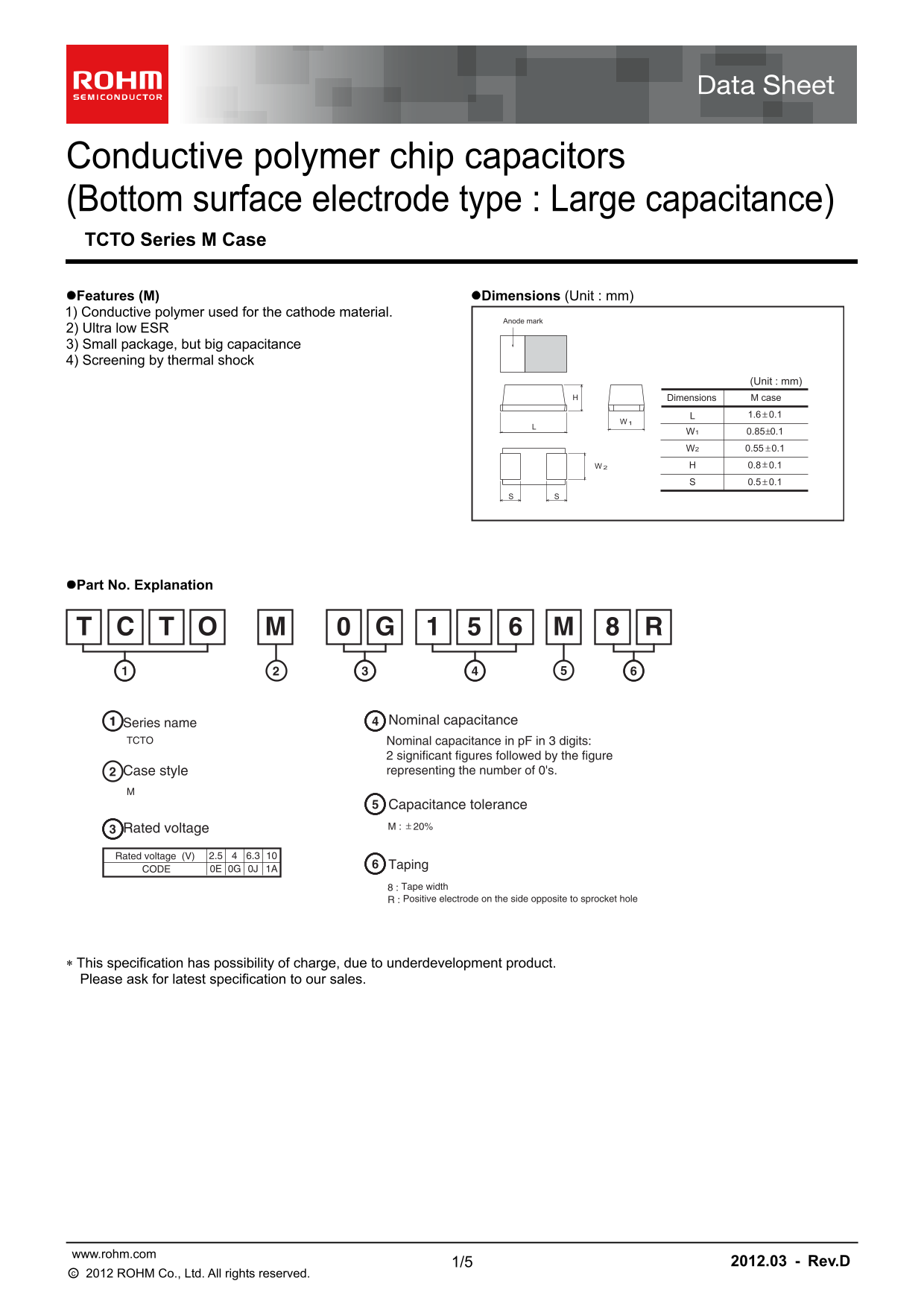

Conductive polymer chip capacitors (Bottom surface electrode type : Large capacitance) TCTO Series M Case Features (M) Dimensions (Unit : mm) 1) Conductive polymer used for the cathode material.
Anode mark
2) Ultra low ESR 3) Small package, but big capacitance 4) Screening by thermal shock
(Unit : mm) Dimensions M case 1.6 0.1+− W1 0.85 0.1+− W2 0.55 0.1+− 0.8 0.1+− 0.5 0.1+−
Part No. Explanation
6C M0 RT
Series name Nominal capacitance
TCTO Nominal capacitance in p F in 3 digits:
2 significant figures followed by the figure Case style representing the number of 0's.
Capacitance tolerance +− 20%M :
Rated voltage
Rated voltage (V) 2.5 6.3
Taping
CODE 0E 0G 0J 1A
8 : Tape width R : Positive electrode on the side opposite to sprocket hole
This specification has possibility of charge, due to underdevelopment product. Please ask for latest specification to our sales.
www.rohm.com
1/5 2012.03 - Rev.D
