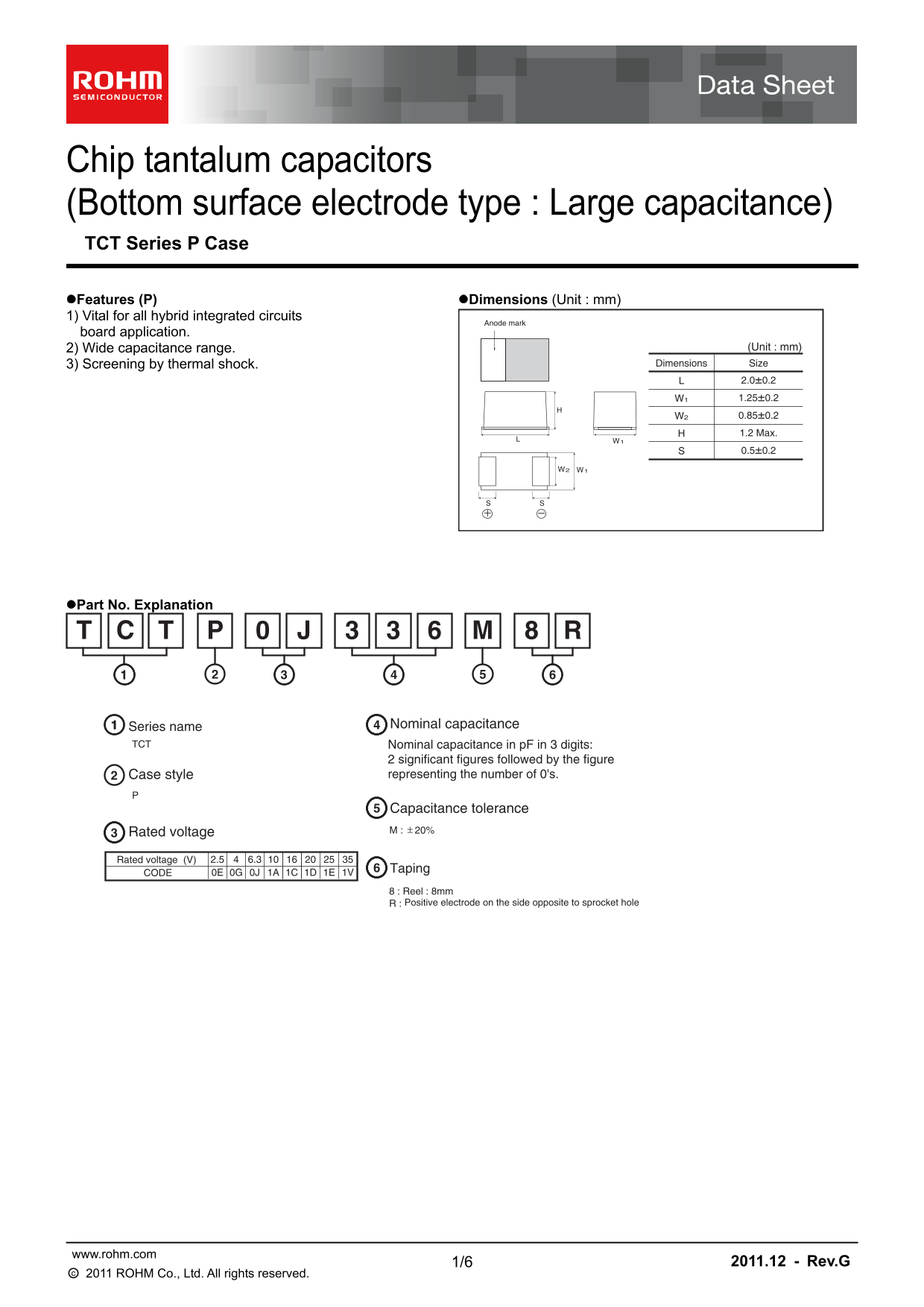

Chip tantalum capacitors (Bottom surface electrode type : Large capacitance) TCT Series P Case Features (P) Dimensions (Unit : mm) 1) Vital for all hybrid integrated circuits
Anode mark
board application.
2) Wide capacitance range. (Unit : mm) 3) Screening by thermal shock. Size Dimensions 2.0±0.2 1.25±0.2 0.85±0.2 1.2 Max. 0.5±0.2
Part No. Explanation
6C M0 RT
Series name Nominal capacitance
TCT Nominal capacitance in p F in 3 digits:
2 significant figures followed by the figure Case style representing the number of 0's.
Capacitance tolerance +− 20%M :
Rated voltage
Rated voltage (V) 2.5 6.3
Taping
CODE 0E 0G 0J 1A 1C 1D 1E 1V
8 : Reel : 8mm R : Positive electrode on the side opposite to sprocket hole
