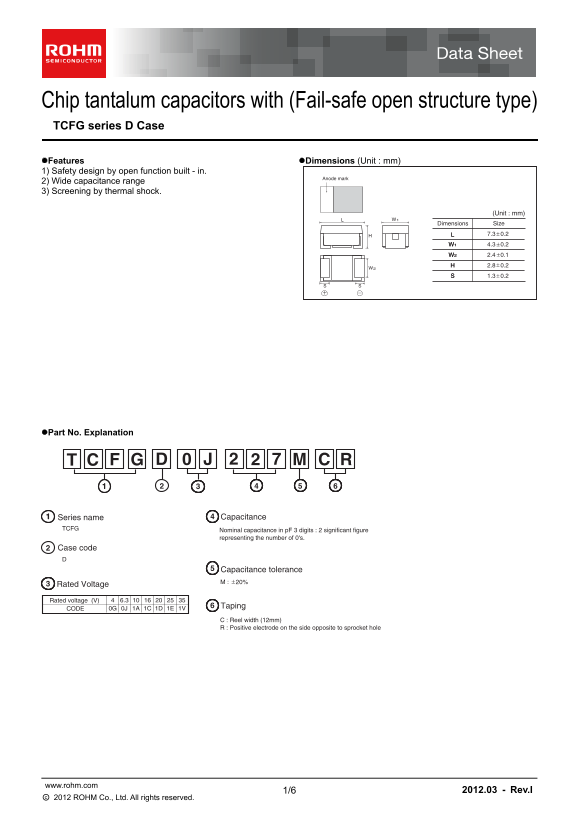

ROHM TCFG series D case Data Handbook
Summary
These high-reliability tantalum capacitors feature a fail-safe open structure, enhancing safety in power electronics. This manual provides comprehensive technical specifications, including dimensions, detailed part number coding for capacitance and voltage, and performance data across extreme temperatures (-55°C to +125°C). Ideal for demanding commercial electronic devices such as communication or automation equipment requiring stable and dependable power components.
Page 1 Text Content
Chip tantalum capacitors with (Fail-safe open structure type) TCFG series D Case
Features Dimensions (Unit : mm) 1) Safety design by open function built - in.
Anode mark
2) Wide capacitance range 3) Screening by thermal shock.
(Unit : mm) Dimensions Size 7.3 0.2+− W1 4.3 0.2+− W2 2.4 0.1+− 2.8 0.2+− 1.3 0.2+−
Part No. Explanation
Series name Capacitance
TCFG Nominal capacitance in p F 3 digits : 2 significant figure
representing the number of 0's.
Case code
Capacitance tolerance +− 20%M :
Rated Voltage
Rated voltage (V) 6.3
Taping
CODE 0G 0J 1A 1C 1D 1E 1V
C : Reel width (12mm) R : Positive electrode on the side opposite to sprocket hole
www.rohm.com
1/6 2012.03 - Rev.I
○c 2012 ROHM Co., Ltd. All rights reserved.
