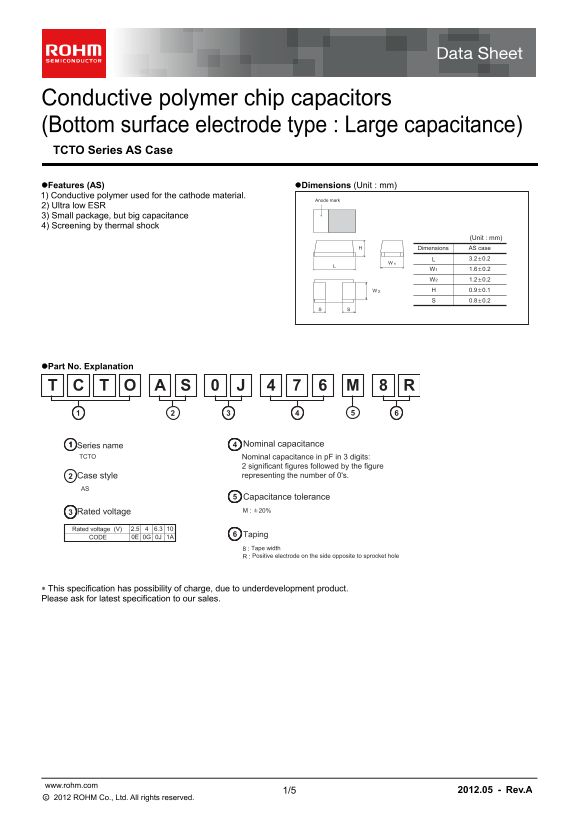

Conductive polymer chip capacitors (Bottom surface electrode type : Large capacitance) TCTO Series AS Case Features (AS) Dimensions (Unit : mm) 1) Conductive polymer used for the cathode material.
Anode mark
2) Ultra low ESR 3) Small package, but big capacitance 4) Screening by thermal shock
(Unit : mm) Dimensions AS case 3.2 0.2+− W1 1.6 0.2+− W2 1.2 0.2+− 0.9 0.1+− 0.8 0.2+−
Part No. Explanation
6C M0 RT
Series name Nominal capacitance
TCTO Nominal capacitance in p F in 3 digits:
2 significant figures followed by the figure Case style representing the number of 0's.
Capacitance tolerance +− 20%M :
Rated voltage
Rated voltage (V) 2.5 6.3
Taping
CODE 0E 0G 0J 1A
8 : Tape width R : Positive electrode on the side opposite to sprocket hole
This specification has possibility of charge, due to underdevelopment product. Please ask for latest specification to our sales.
www.rohm.com
1/5 2012.05 - Rev.A
○c 2012 ROHM Co., Ltd. All rights reserved.
