Discover high-reliability thick film chip resistors optimized for precision electronics. Available in an extensive range of sizes (01005 to 2512) and offering industrial/automotive grades compliant with AEC-Q200. This manual provides comprehensive technical specifications—including precise dimension codes, resistance ranges, and tolerance levels—making it essential for hardware engineers designing durable circuits for demanding general-purpose equipment.

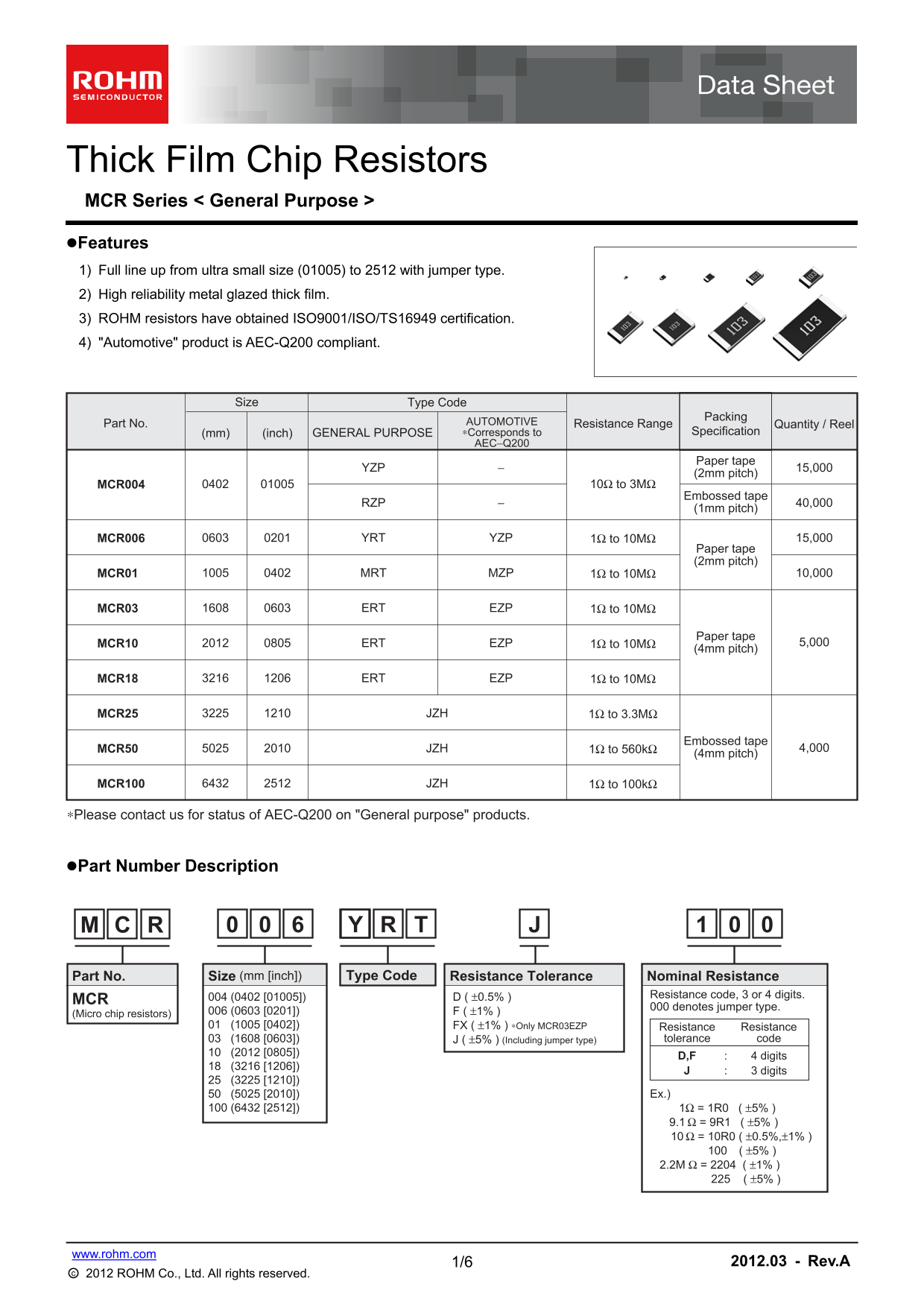

Page 1 Text Content
Thick Film Chip Resistors MCR Series < General Purpose > Features 1) Full line up from ultra small size (01005) to 2512 with jumper type. 2) High reliability metal glazed thick film. 3) ROHM resistors have obtained ISO9001/ISO/TS16949 certification. 4) "Automotive" product is AEC-Q200 compliant.
Type Code Size
Packing
Part No. AUTOMOTIVE Resistance Range Quantity / Reel
(mm) (inch) GENERAL PURPOSE ∗Corresponds to Specification
AEC−Q200
Paper tape
YZP 15,000
(2mm pitch)
MCR004 10Ω to 3MΩ
Embossed tape
RZP 40,000
(1mm pitch)
MCR006 YRT YZP 1Ω to 10MΩ 15,000
Paper tape (2mm pitch)
MCR01 MRT MZP 1Ω to 10MΩ 10,000
MCR03 ERT EZP 1Ω to 10MΩ
Paper tape
MCR10 ERT EZP 1Ω to 10MΩ 5,000
(4mm pitch)
MCR18 ERT EZP 1Ω to 10MΩ
MCR25 JZH 1Ω to 3.3MΩ
Embossed tape
MCR50 JZH 1Ω to 560kΩ 4,000
(4mm pitch)
MCR100 JZH 1Ω to 100kΩ
∗Please contact us for status of AEC-Q200 on "General purpose" products.
Part Number Description
Part No. Size (mm [inch]) Type Code Resistance Tolerance Nominal Resistance
004 (0402 [01005]) D ( ±0.5% ) Resistance code, 3 or 4 digits.
000 denotes jumper type.
(Micro chip resistors) 006 (0603 [0201]) F ( ±1% ) 01 (1005 [0402]) FX ( ±1% ) ∗Only MCR03EZP Resistance Resistance
03 (1608 [0603]) J ( ±5% ) (Including jumper type) tolerance code
D,F 4 digits
3 digits
50 (5025 [2010]) Ex.)
www.rohm.com
1/6 2012.03 - Rev.A
○c 2012 ROHM Co., Ltd. All rights reserved.
Page Summary Contents For ROHM MCR Series User Manual and Specifications
Manual Details
| Brand | ROHM |
|---|---|
| Pages | 7 |
| File Size | 189.85 KB |
| Published | June 22, 2026 |
Enter the captcha to get the download link:
Frequently Asked Questions
Can I use these resistors in safety-critical equipment like medical instruments?
No. The products are not designed for systems requiring extremely high reliability, such as medical instruments or aerospace machinery.
What is required when using these components to prevent injury or fire?
You must implement safety measures like derating, redundancy, or fail-safe designs in your equipment to guard against failure.
How do I identify the nominal resistance value on the package?
Three or four digits are used according to IEC code, and "R" is utilized for indicating the decimal point.
Are the resistors suitable for automative applications?
Yes, the specific "Automotive" product line offered is AEC-Q200 compliant.
