Achieve superior print reliability and quality with this near edge thermal printhead, engineered using ROHM's unique Step Free Technology. The design ensures excellent contact with thick media and supports continuous, high-speed printing necessary for demanding industrial applications. Ideal for barcode label, packaging, ticket, and general purpose printers. This technical manual provides comprehensive details on electrical characteristics, timing requirements, pin configuration, and detailed operational parameters for seamless integration into your equipment.

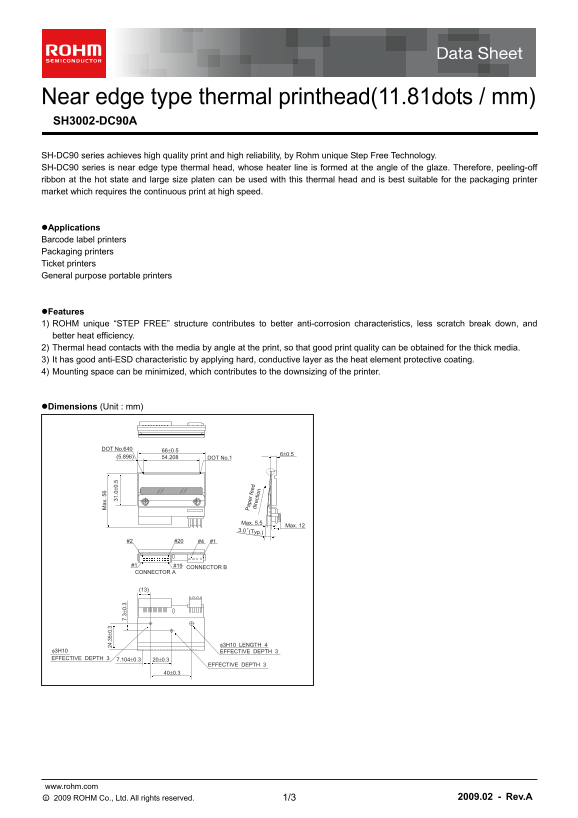

Page 1 Text Content
Near edge type thermal printhead(11.81dots / mm)
ax . 5
SH3002-DC90A 7. 3± 0.
SH-DC90 series achieves high quality print and high reliability, by Rohm unique Step Free Technology. SH-DC90 series is near edge type thermal head, whose heater line is formed at the angle of the glaze. Therefore, peeling-off ribbon at the hot state and large size platen can be used with this thermal head and is best suitable for the packaging printer market which requires the continuous print at high speed.
Applications Barcode label printers
ap er Packaging printers fe ed di re ct io
Ticket printers General purpose portable printers
Features 1) ROHM unique “STEP FREE” structure contributes to better anti-corrosion characteristics, less scratch break down, and better heat efficiency. 2) Thermal head contacts with the media by angle at the print, so that good print quality can be obtained for the thick media. 3) It has good anti-ESD characteristic by applying hard, conductive layer as the heat element protective coating. 4) Mounting space can be minimized, which contributes to the downsizing of the printer.
Dimensions (Unit : mm)
DOT No.640 66±0.5
(5.896) 54.208 DOT No.1
Max. 5.5
Max. 12
3.0 (Typ.)
#19#1 CONNECTOR B
CONNECTOR A
φ3H10 LENGTH 4
φ3H10 EFFECTIVE DEPTH 3 EFFECTIVE DEPTH 3 7.104±0.3 20±0.3
EFFECTIVE DEPTH 3
www.rohm.com ○c 2009 ROHM Co., Ltd. All rights reserved. 2009.02 - Rev.A 1/3
Page Summary Contents For ROHM SH3002-DC90A User Guide
Manual Details
| Brand | ROHM |
|---|---|
| Pages | 4 |
| File Size | 111.26 KB |
| Published | June 18, 2026 |
Enter the captcha to get the download link:
Frequently Asked Questions
What types of environments is this thermal head suitable for?
The operating temperature range is specified as -5 to 45 °C.
What are the optimal uses for the SH-DC90 series head?
It is best suited for packaging, barcode label, ticket, and general purpose portable printers.
How does the design help achieve good print quality on thick media?
The thermal head contacts the media at an angle during printing, which facilitates obtaining good print quality even with thick media.
Is this printer component resistant to static discharge?
Yes, it features a good anti-ESD characteristic through the application of a conductive layer as the heat element protective coating.
