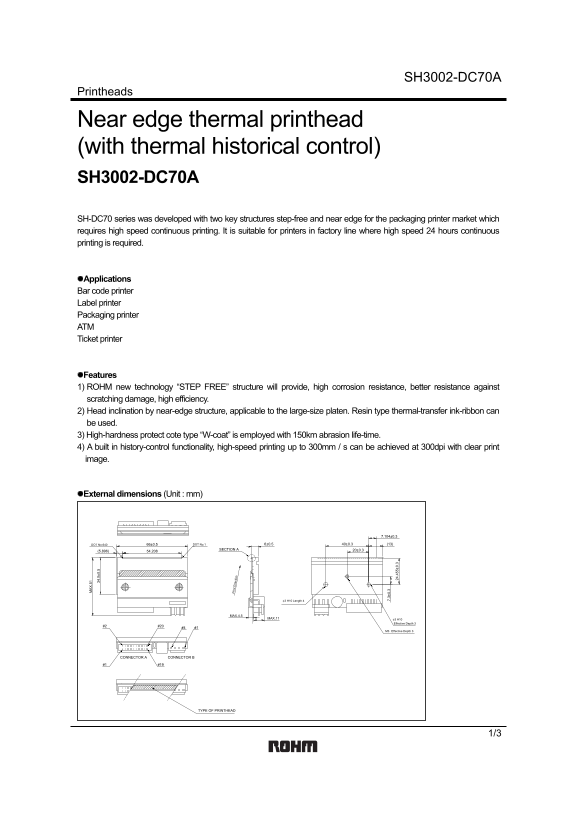

Page 1 Text Content
SH3002-DC70A
Printheads
Near edge thermal printhead (with thermal historical control) SH3002-DC70A SH-DC70 series was developed with two key structures step-free and near edge for the packaging printer market which requires high speed continuous printing. It is suitable for printers in factory line where high speed 24 hours continuous rin t D
ire ct io
printing is required.
Applications Bar code printer Label printer Packaging printer ATM Ticket printer
Features 1) ROHM new technology “STEP FREE” structure will provide, high corrosion resistance, better resistance against 7. 3± 0.
scratching damage, high efficiency. 2) Head inclination by near-edge structure, applicable to the large-size platen. Resin type thermal-transfer ink-ribbon can be used. 3) High-hardness protect cote type “W-coat” is employed with 150km abrasion life-time. 4) A built in history-control functionality, high-speed printing up to 300mm / s can be achieved at 300dpi with clear print image.
External dimensions (Unit : mm)
66±0.5 DOT No.1DOT No.640 6±0.5 40±0.3 (13)
54.208(5.896) SECTION A 20±0.3
φ3 H10 Length 4
MAX.4.5
MAX.11 φ3 H10
Effective Depth 3
M3 Effective Depth 3
CONNECTOR A CONNECTOR B
TYPE OF PRINTHEAD
