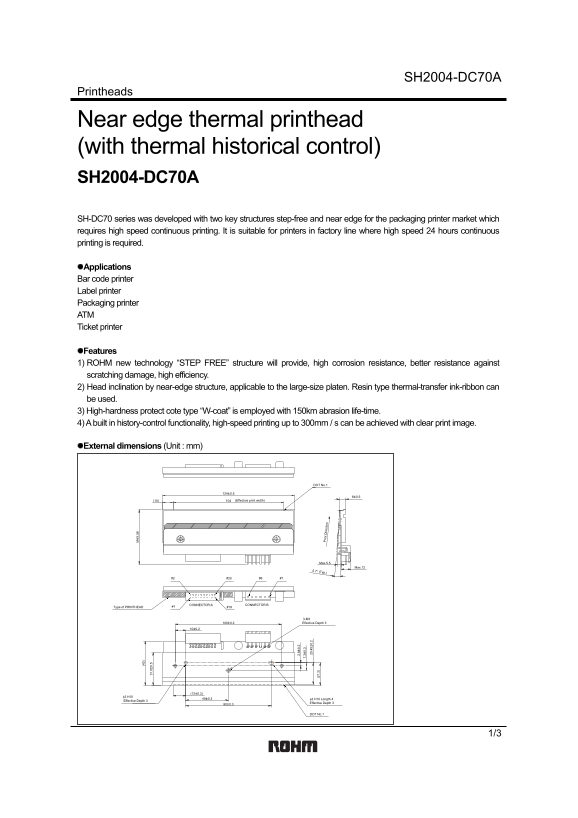

SH2004-DC70A Printheads
Near edge thermal printhead
(with thermal historical control) .0 0.
SH2004-DC70A
SH-DC70 series was developed with two key structures step-free and near edge for the packaging printer market which requires high speed continuous printing. It is suitable for printers in factory line where high speed 24 hours continuous printing is required.
Applications Bar code printer Label printer
Packaging printer 7. 3± 0. .4 5± 0.
ATM (2 1. 2)
rin t D ire ct io
Ticket printer
Features 1) ROHM new technology “STEP FREE” structure will provide, high corrosion resistance, better resistance against scratching damage, high efficiency. 2) Head inclination by near-edge structure, applicable to the large-size platen. Resin type thermal-transfer ink-ribbon can be used. 3) High-hardness protect cote type “W-coat” is employed with 150km abrasion life-time. 4) A built in history-control functionality, high-speed printing up to 300mm / s can be achieved with clear print image.
External dimensions (Unit : mm)
DOT No.1
(10) (Effective print width)
Max.5.5
Max.12
5.7° (Typ.)
#1 CONNECTOR:BCONNECTOR:A
Type of PRINTHEAD #19
3-M3 100±0.2 Effective Depth 3
φ3 H10 Length 4Effective Depth 3 80±0.3 Effective Depth 3
DOT No.1
