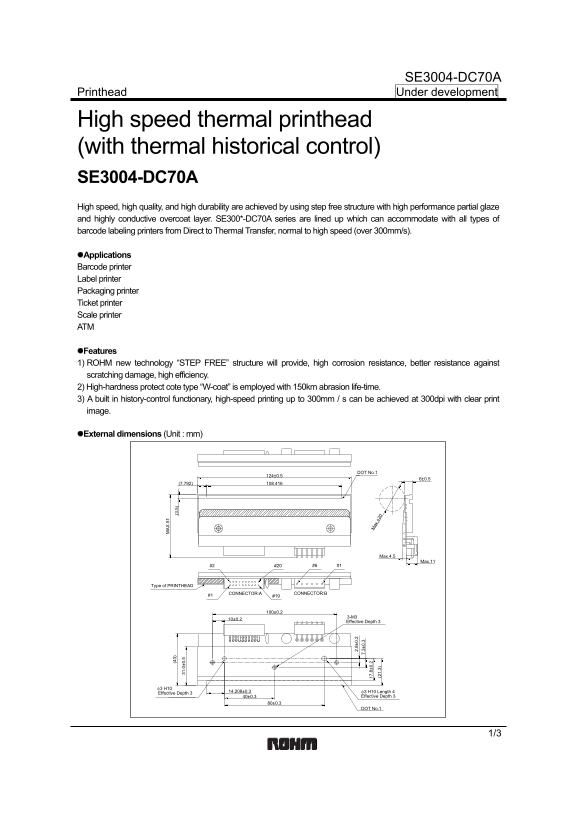

Page 1 Text Content
SE3004-DC70A Printhead Under development
High speed thermal printhead (with thermal historical control)
SE3004-DC70A
High speed, high quality, and high durability are achieved by using step free structure with high performance partial glaze and highly conductive overcoat layer. SE300*-DC70A series are lined up which can accommodate with all types of barcode labeling printers from Direct to Thermal Transfer, normal to high speed (over 300mm/s).
Applications Barcode printer Label printer Packaging printer Ticket printer Scale printer ATM
Features
2. 8± 0. 1) ROHM new technology “STEP FREE” structure will provide, high corrosion resistance, better resistance against 7. 3± 0.
scratching damage, high efficiency. ax .φ
2) High-hardness protect cote type “W-coat” is employed with 150km abrasion life-time. 3) A built in history-control functionary, high-speed printing up to 300mm / s can be achieved at 300dpi with clear print image.
External dimensions (Unit : mm)
DOT No.1
Max.4.5
Max.11
Type of PRINTHEAD
#1 CONNECTOR:BCONNECTOR:A
Effective Depth 3
14.208±0.3 φ3 H10 Length 4Effective Depth 3
40±0.3 Effective Depth 3
DOT No.1
