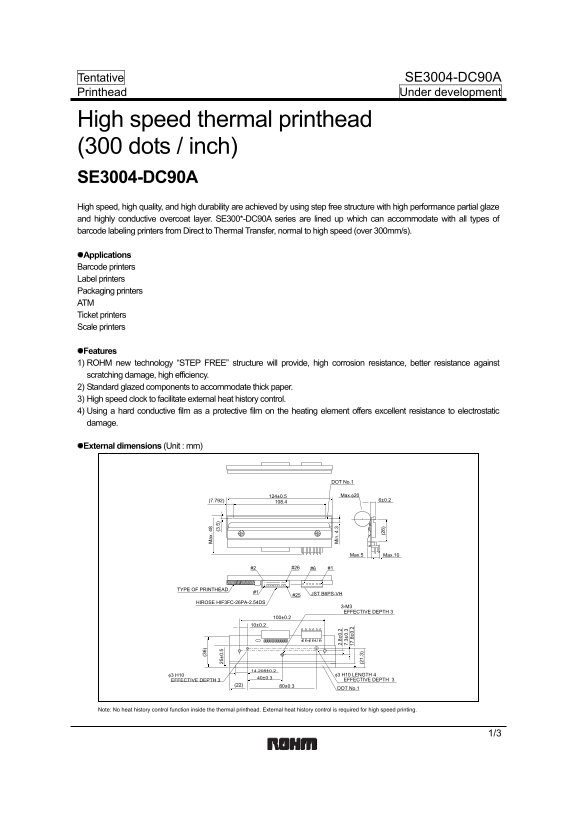

Tentative SE3004-DC90A Printhead Under development
High speed thermal printhead (300 dots / inch) SE3004-DC90A (3 6) High speed, high quality, and high durability are achieved by using step free structure with high performance partial glaze
ax . 4 and highly conductive overcoat layer. SE300*-DC90A series are lined up which can accommodate with all types of (3 .5
barcode labeling printers from Direct to Thermal Transfer, normal to high speed (over 300mm/s).
Applications Barcode printers Label printers Packaging printers ATM Ticket printers Scale printers
in . 4 .3
2. 8± 0. 7. 3± 0. Features .8 0. (2 1. 3)
1) ROHM new technology “STEP FREE” structure will provide, high corrosion resistance, better resistance against scratching damage, high efficiency.
2) Standard glazed components to accommodate thick paper. 3) High speed clock to facilitate external heat history control. 4) Using a hard conductive film as a protective film on the heating element offers excellent resistance to electrostatic damage.
External dimensions (Unit : mm)
DOT No.1
124±0.5 Max.φ20
Max.5 Max.10
#1TYPE OF PRINTHEAD JST B6PS-VH
HIROSE HIF3FC-26PA-2.54DS
3-M3 EFFECTIVE DEPTH 3
φ3 H10 φ3 H10 LENGTH 4
40±0.3 EFFECTIVE DEPTH 3
EFFECTIVE DEPTH 3
DOT No.1
Note: No heat history control function inside the thermal printhead. External heat history control is required for high speed printing.
