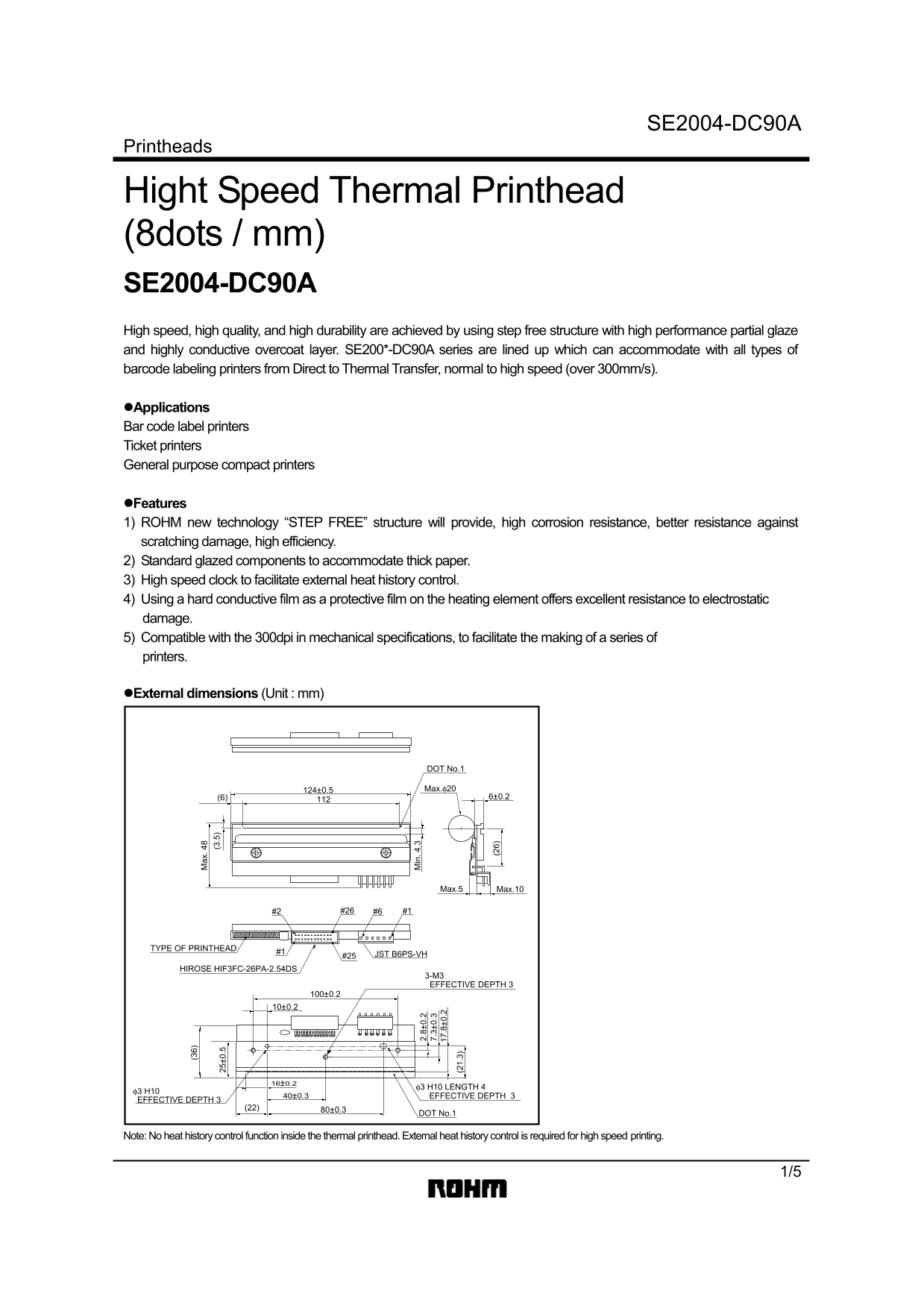

SE2004-DC90A
Printheads
Hight Speed Thermal Printhead (3 6)
ax . 4 (3 .5
(8dots / mm) SE2004-DC90A High speed, high quality, and high durability are achieved by using step free structure with high performance partial glaze and highly conductive overcoat layer. SE200*-DC90A series are lined up which can accommodate with all types of barcode labeling printers from Direct to Thermal Transfer, normal to high speed (over 300mm/s). Applications
in . 4 .3
Bar code label printers
Ticket printers
General purpose compact printers
Features 1) ROHM new technology “STEP FREE” structure will provide, high corrosion resistance, better resistance against scratching damage, high efficiency. 2) Standard glazed components to accommodate thick paper. 3) High speed clock to facilitate external heat history control. 4) Using a hard conductive film as a protective film on the heating element offers excellent resistance to electrostatic damage. 5) Compatible with the 300dpi in mechanical specifications, to facilitate the making of a series of printers.
External dimensions (Unit : mm)
DOT No.1
124±0.5 Max.φ20
Max.5 Max.10
#25#1TYPE OF PRINTHEAD JST B6PS-VH
HIROSE HIF3FC-26PA-2.54DS
3-M3 EFFECTIVE DEPTH 3
φ3 H10 LENGTH 4
40±0.3 EFFECTIVE DEPTH 3φ3 H10
EFFECTIVE DEPTH 3
DOT No.1
Note: No heat history control function inside the thermal printhead. External heat history control is required for high speed printing.
