ROHM RDS RBDS decoder BU1923 BU1923F Data Sheet User Manual
Summary
The BU1923/BU1923F is a specialized RDS / RBDS decoder utilizing low-power linear CMOS circuitry and a digital PLL. It is designed for manufacturers needing reliable signal processing in applications such as car stereos, FM receivers (American and European markets), high-fidelity stereo systems, and pagers. This manual serves as a complete technical reference, providing detailed information regarding block diagrams, pin specifications, electrical characteristics, precise output data timing protocols (RDATA/RCLK), and the integrated quality indication features for seamless implementation.
Page 1 Text Content
Audio ICs

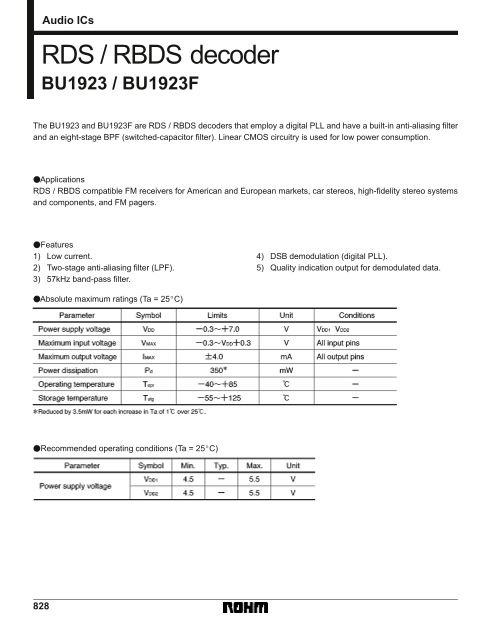

RDS RBDS decoder BU1923 BU1923F The BU1923 and BU1923F are RDS RBDS decoders that employ a digital PLL and have a built-in anti-aliasing filter and an eight-stage BPF (switched-capacitor filter). Linear CMOS circuitry is used for low power consumption.
Applications RDS RBDS compatible FM receivers for American and European markets, car stereos, high-fidelity stereo systems and components, and FM pagers.
Features 1) Low current. 4) DSB demodulation (digital PLL). 2) Two-stage anti-aliasing filter (LPF). 5) Quality indication output for demodulated data. 3) 57k Hz band-pass filter.
Absolute maximum ratings (Ta = 25C)
Recommended operating conditions (Ta = 25C)
