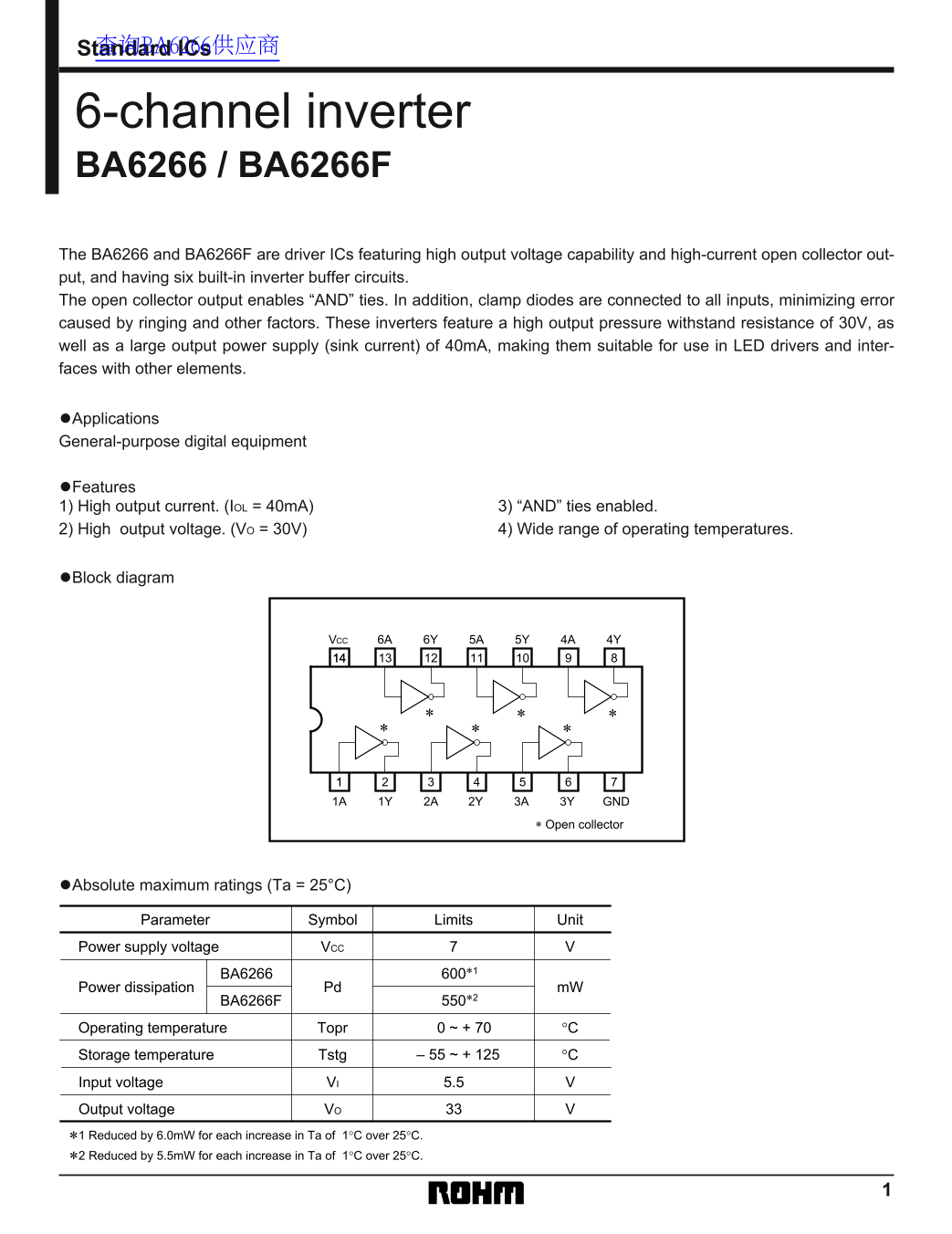

ROHM BA6266 BA6266F Data Sheet User Manual

Standard ICs 查询BA6266供应商

6-channel inverter BA6266 / BA6266F The BA6266 and BA6266F are driver ICs featuring high output voltage capability and high-current open collector out- put, and having six built-in inverter buffer circuits. The open collector output enables “AND” ties. In addition, clamp diodes are connected to all inputs, minimizing error caused by ringing and other factors. These inverters feature a high output pressure withstand resistance of 30V, as well as a large output power supply (sink current) of 40m A, making them suitable for use in LED drivers and inter- faces with other elements.

•Applications General-purpose digital equipment •Features 1) High output current. (IOL = 40m A) 3) “AND” ties enabled.

2) High output voltage. (VO = 30V) 4) Wide range of operating temperatures.

•Block diagram

VCC 6A 6Y 5A 5Y 4A 4Y

1A 1Y 2A 2Y 3A 3Y GND

∗ Open collector

•Absolute maximum ratings (Ta = 25°C) Parameter Symbol Limits Unit Power supply voltage VCC

BA6266 600∗1

Power dissipation Pd m W

BA6266F 550∗2

Operating temperature Topr 0 ~ + 70 °C

Storage temperature Tstg – 55 ~ + 125 °C

Input voltage VI 5.5

Output voltage VO

∗1 Reduced by 6.0m W for each increase in Ta of 1°C over 25°C. ∗2 Reduced by 5.5m W for each increase in Ta of 1°C over 25°C.
