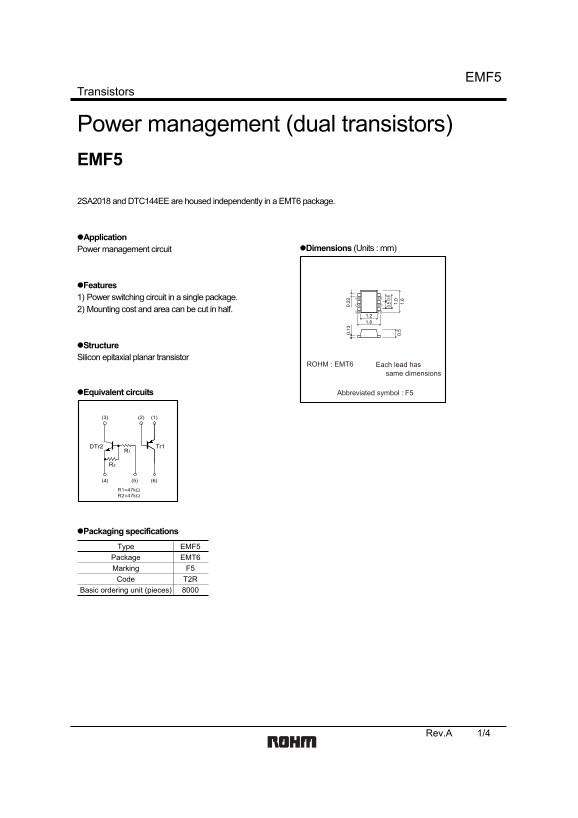

Page 1 Text Content
Transistors
Power management (dual transistors) EMF5 2SA2018 and DTC144EE are housed independently in a EMT6 package.
Application
Power management circuit Dimensions (Units : mm)
Features
1) Power switching circuit in a single package. (4) (3) (2)(5)
2) Mounting cost and area can be cut in half. (6) (1)
Structure 0. 0.
Silicon epitaxial planar transistor
ROHM : EMT6 Each lead has
same dimensions
Equivalent circuits Abbreviated symbol : F5
DTr2 Tr1
Packaging specifications Type EMF5 Package EMT6
Marking F5 Code T2R
Basic ordering unit (pieces)
Rev.A 1/4
Page Summary Contents For ROHM EMF5 Data Sheet and User Manual
Manual Details
| Brand | ROHM |
|---|---|
| Pages | 5 |
| File Size | 84.54 KB |
| Published | June 17, 2026 |
Enter the captcha to get the download link:
Frequently Asked Questions
What package does the EMF5 transistor use?
It uses the EMT6 package, with marking code F5 and 8000 pieces per basic order unit.
What is the max collector current for Tr1?
The max collector current is −500 mA, with a single pulse peak of −1.0 A at PW=1ms.
What devices is the EMF5 designed for?
It is for ordinary electronics like AV, OA, communication devices, appliances and electronic toys.
What are the key features of the EMF5?
It integrates a power switching circuit in one package, cutting mounting cost and area by half.
