The EM6J1 is a high-performance Silicon P-channel MOSFET designed for reliable, high-speed switching applications requiring ultra-low voltage drive (1.2V). This comprehensive datasheet provides technical documentation, including detailed electrical characteristics, absolute maximum ratings, and performance curves across varying temperatures. It is ideal for electronics developers designing general-use equipment such as audio-visual devices, communication systems, or office automation gear that demands dependable switching components.

📄 Preview ‹ PAGE OF 5 ›

‹

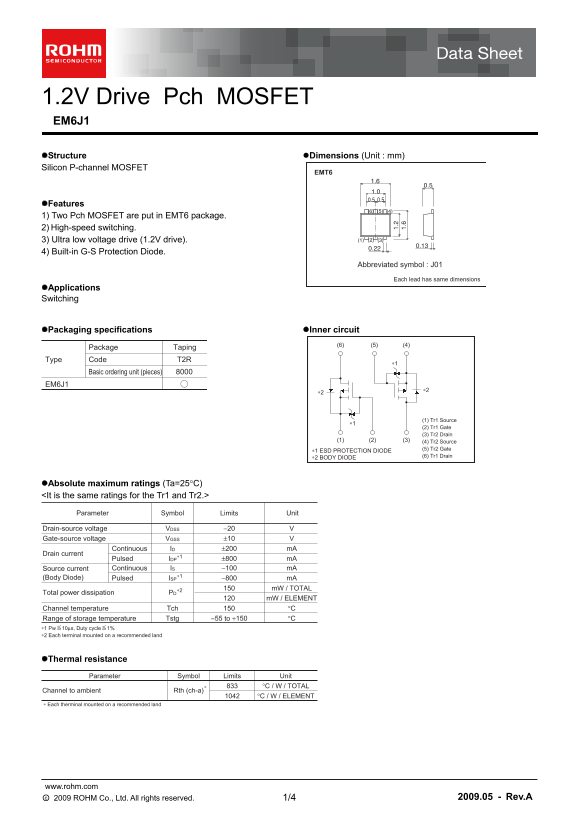

ROHM EM6J1 Data Sheet User Manual - Page 1

›

Page 1 Text Content

1.2V Drive Pch MOSFET EM6J1 Structure Dimensions (Unit : mm) Silicon P-channel MOSFET

Features 1) Two Pch MOSFET are put in EMT6 package. 2) High-speed switching. 3) Ultra low voltage drive (1.2V drive). 4) Built-in G-S Protection Diode.

Abbreviated symbol : J01

Each lead has same dimensions

Applications Switching

Packaging specifications Inner circuit

Package Taping

Type Code T2R

Basic ordering unit (pieces)

EM6J1

(1) Tr1 Source

(2) Tr1 Gate (3) Tr2 Drain

(1) (2) (3) (4) Tr2 Source

(5) Tr2 Gate

∗1 ESD PROTECTION DIODE

∗2 BODY DIODE (6) Tr1 Drain

Absolute maximum ratings (Ta=25°C) <It is the same ratings for the Tr1 and Tr2.>

Parameter Symbol Limits Unit

Drain-source voltage −20 VVDSS Gate-source voltage ±10 VVGSS Continuous ±200 m AID

Drain current

Pulsed ±800 m AIDP Source current Continuous −100 m AIS

(Body Diode) ∗1

Pulsed −800 m AISP

∗2 m W / TOTAL

Total power dissipation PD

m W / ELEMENT Channel temperature °CTch

Range of storage temperature −55 to +150 °CTstg

∗1 Pw 10µs, Duty cycle 1% ∗2 Each terminal mounted on a recommended land

Thermal resistance

Parameter Symbol Limits Unit

°C / W / TOTAL

Channel to ambient Rth (ch-a)

°C / W / ELEMENT1042

∗ Each therminal mounted on a recommended land

Page Summary Contents For ROHM EM6J1 Data Sheet User Manual

Page 1 1.2V Drive Pch MOSFET EM6J1 Structure Dimensions (Unit : mm) Silicon P-channel MOSFET Features 1) Two Pch MOSFET are put in EMT6 package. 2) High-speed switching. 3) Ultra low voltage drive (1.2V driv...

Page 2 EM6J1 Data Sheet Electrical characteristics (Ta=25°C) <It is the same ratings for the Tr1 and Tr2.> Parameter Symbol Min. Typ. Max. Unit Conditions Gate-source leakage IGSS ±10 µA VGS= ±10V, VDS...

Page 3 EM6J1 Data Sheet ST AT IC AI -S -S TA TE ST AT IC AI -S -S TA TE ES IS TA : R )[m ES IS TA : R S( )[m AI EN : - [A Electrical characteristics curves Ta=25°C Ta=25°C VDS= -10V Pulsed VGS= -4.5V Pulsed ...

Page 4 EM6J1 Data Sheet FO AR AN SF ER IT TA : | Yf s| [S SW IT IN IM : t [n s] VDS= -10V VGS=0V Ta=25°C Pulsed Pulsed Pulsed ID= -0.2A Ta=-25°C 0.1 Ta=125°C ID= -0.01A Ta=25°C Ta=75°C Ta=75°C Ta=25°C Ta=125...

Page 5 Notice No copying or reproduction of this document, in part or in whole, is permitted without the consent of ROHM Co.,Ltd. The content specified herein is subject to change for improvement without not...
