These MCR10 resistors are high-reliability, thick film chip components designed for demanding electronic applications requiring stable performance up to 1/8W. This manual provides exhaustive technical data, detailing operating ranges from -55°C to +155°C, and covers rigorous tests including thermal cycling, overload capacity, and chemical endurance. Engineers and circuit designers will find comprehensive specifications regarding power derating curves and material resistance tolerances necessary for building reliable equipment in harsh environments.

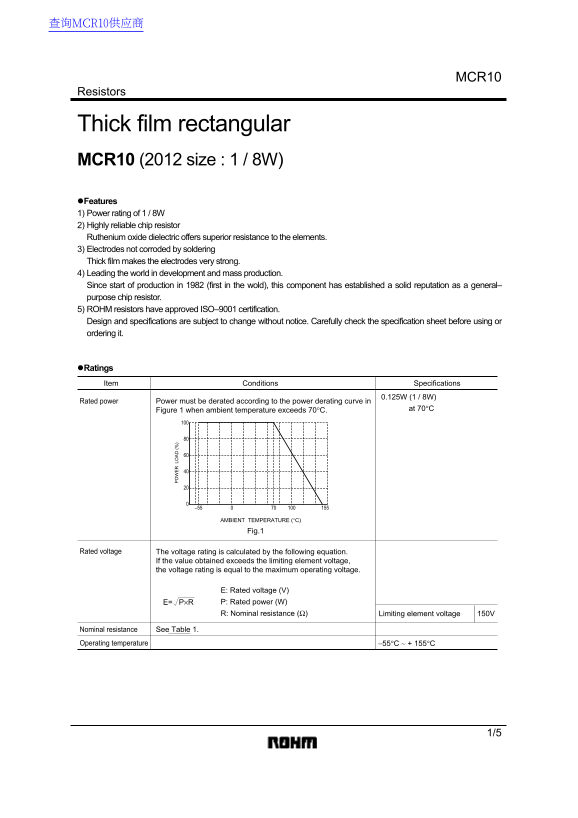

Page 1 Text Content
查询MCR10供应商
MCR10
Resistors
Thick film rectangular MCR10 (2012 size : 1 / 8W) !Features 1) Power rating of 1 / 8W 2) Highly reliable chip resistor Ruthenium oxide dielectric offers superior resistance to the elements. 3) Electrodes not corroded by soldering Thick film makes the electrodes very strong. 4) Leading the world in development and mass production. Since start of production in 1982 (first in the wold), this component has established a solid reputation as a general purpose chip resistor. 5) ROHM resistors have approved ISO9001 certification. Design and specifications are subject to change without notice. Carefully check the specification sheet before using or ordering it.
!Ratings Item Conditions Specifications
Rated power Power must be derated according to the power derating curve in
Figure 1 when ambient temperature exceeds 70°C. at 70°C
AMBIENT TEMPERATURE (°C)
Fig.1
Rated voltage The voltage rating is calculated by the following equation.
If the value obtained exceeds the limiting element voltage, the voltage rating is equal to the maximum operating voltage.
E: Rated voltage (V) E= P×R P: Rated power (W) R: Nominal resistance (Ω) Limiting element voltage 150V
Nominal resistance See Table 1.
Operating temperature −55°C ∼ + 155°C
Page Summary Contents For ROHM MCR10 Data Sheet User Manual
Manual Details
| Brand | ROHM |
|---|---|
| Pages | 5 |
| File Size | 97.75 KB |
| Published | June 18, 2026 |
Enter the captcha to get the download link:
Frequently Asked Questions
What is the maximum rated voltage for the component?
The limiting element voltage is 150V, which determines the voltage rating calculation.
What should I do if the ambient temperature exceeds 70°C?
You must derate the power according to the power derating curve provided in Figure 1.
How does the component perform under high heat exposure?
It can withstand an endurance test at 155°C for 1,000h with no load.
Can I exceed the maximum rated voltage?
No, if the steady state voltage exceeds its rated voltage, reliability and performance cannot be guaranteed.
