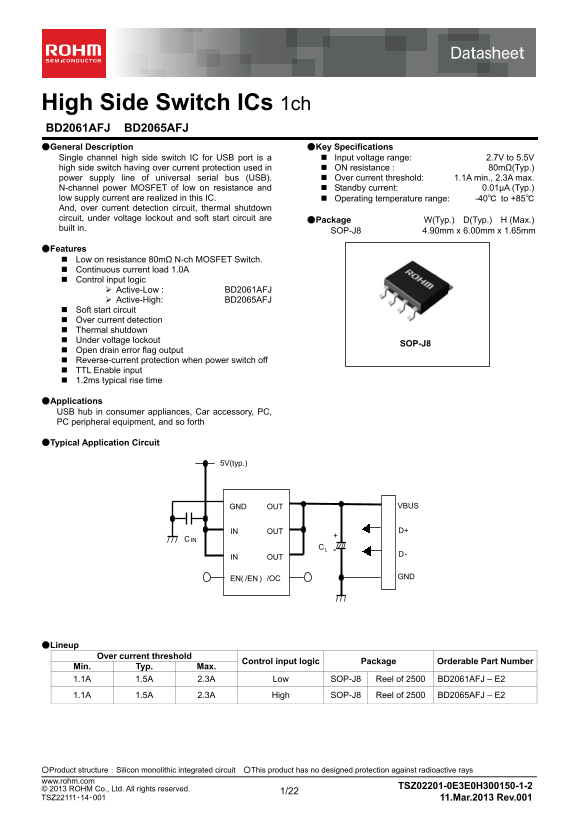

Datasheet
High Side Switch ICs 1ch BD2061AFJ BD2065AFJ ●General Description ●Key Specifications Single channel high side switch IC for USB port is a Input voltage range: 2.7V to 5.5V high side switch having over current protection used in ON resistance : 80mΩ(Typ.) power supply line of universal serial bus (USB). Over current threshold: 1.1A min., 2.3A max. N-channel power MOSFET of low on resistance and Standby current: 0.01μA (Typ.) low supply current are realized in this IC. Operating temperature range: -40℃ to +85℃ And, over current detection circuit, thermal shutdown circuit, under voltage lockout and soft start circuit are ●Package W(Typ.) D(Typ.) H (Max.) built in.
SOP-J8 4.90mm x 6.00mm x 1.65mm
●Features Low on resistance 80mΩ N-ch MOSFET Switch. Continuous current load 1.0A Control input logic
Active-Low : BD2061AFJ Active-High: BD2065AFJ
Soft start circuit Over current detection Thermal shutdown Under voltage lockout
SOP-J8
Open drain error flag output Reverse-current protection when power switch off TTL Enable input 1.2ms typical rise time
●Applications USB hub in consumer appliances, Car accessory, PC, PC peripheral equipment, and so forth
●Typical Application Circuit
5V(typ.)
GND VBUS OUT
OUT IN D+
IN OUT
EN( /EN /OC GND
●Lineup
Over current threshold Control input logic
Package Orderable Part Number Min. Typ. Max.
1.1A 1.5A 2.3A Low SOP-J8 Reel of 2500 BD2061AFJ – E2 1.1A 1.5A 2.3A High SOP-J8 Reel of 2500 BD2065AFJ – E2
○Product structure：Silicon monolithic integrated circuit ○This product has no designed protection against radioactive rays www.rohm.com
