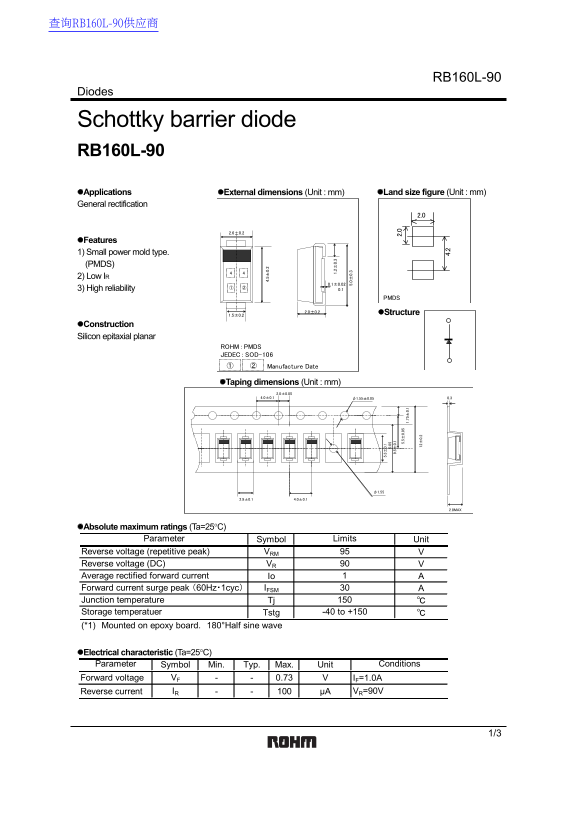

Page 1 Text Content
查询RB160L-90供应商
RB160L-90
Diodes
Schottky barrier diode RB160L-90
Applications External dimensions (Unit : mm) Land size figure (Unit : mm)
General rectification
Features 1) Small power mold type. (PMDS)
2) Low IR
3) High reliability 0.1
2.0±0.2 Structure
Construction
Silicon epitaxial planar
ROHM : PMDS
JEDEC : SOD-106
Manufacture Date②
Taping dimensions (Unit : mm) .3 .1
2.8MAX
Absolute maximum ratings (Ta=25°C)
Parameter Symbol Limits Unit
Reverse voltage (repetitive peak) VRM Reverse voltage (DC) VR
Average rectified forward current Io Forward current surge peak （60Hz・1cyc） IFSM Junction temperature Tj Storage temperatuer Tstg -40 to +150 (*1) Mounted on epoxy board. 180°Half sine wave
Electrical characteristic (Ta=25°C)
Symbol Min. Typ. Max. Unit Conditions Parameter
orward voltage VF 0.73 IF=1.0A Reverse current IR µA VR=90V
