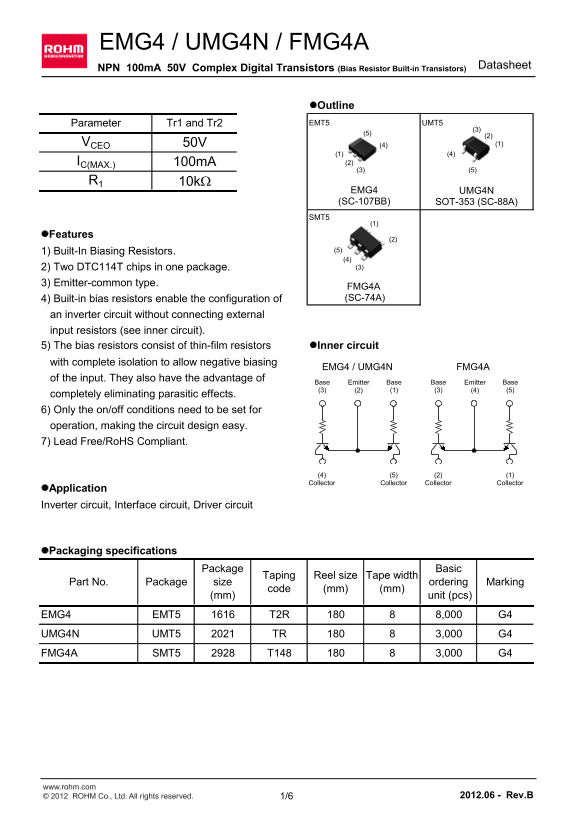

EMG4 / UMG4N / FMG4A
Datasheet
NPN 100m A 50V Complex Digital Transistors (Bias Resistor Built-in Transistors)
l Outline Parameter Tr1 and Tr2 EMT5 UMT5
VCEO 50V (4) (1)
(1) (4) IC(MAX.) 100m A (2) (3) (5)
EMG4 UMG4N (SC-107BB) SOT-353 (SC-88A)
l Features
1) Built-In Biasing Resistors. (5) (4) 2) Two DTC114T chips in one package. (3)
3) Emitter-common type.
FMG4A 4) Built-in bias resistors enable the configuration of (SC-74A)
an inverter circuit without connecting external input resistors (see inner circuit).
5) The bias resistors consist of thin-film resistors l Inner circuit
with complete isolation to allow negative biasing
EMG4 / UMG4N FMG4A
of the input. They also have the advantage of
Emitter Emitter
completely eliminating parasitic effects. 6) Only the on/off conditions need to be set for operation, making the circuit design easy. 7) Lead Free/Ro HS Compliant.
(4) (5) (2) (1) Collector Collector Collector Collector
l Application Inverter circuit, Interface circuit, Driver circuit
l Packaging specifications
Package Basic
Taping Reel size Tape width
Part No. Package size ordering Marking
code (mm) (mm)
(mm) unit (pcs)
EMG4 EMT5 T2R 8,000 G48 UMG4N UMT5 TR 3,000 G4 FMG4A SMT5 T148 3,000 G4
