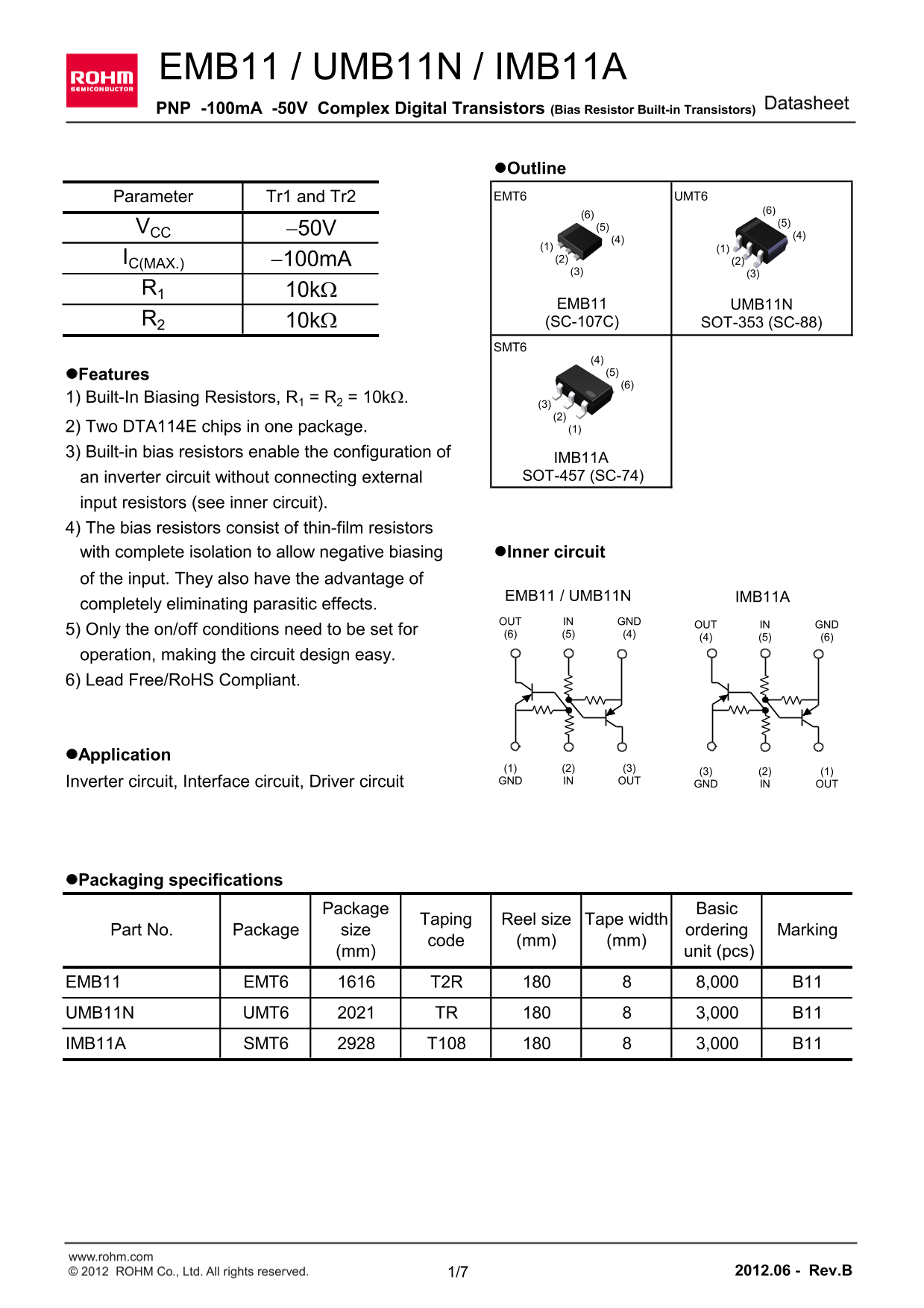

Page 1 Text Content

EMB11 / UMB11N / IMB11A

Datasheet

PNP -100m A -50V Complex Digital Transistors (Bias Resistor Built-in Transistors)

l Outline Parameter Tr1 and Tr2 EMT6 UMT6

VCC -50V (5)

(1) (1) IC(MAX.) -100m A (2) (2) (3) (3)

EMB11 UMB11N

R2 10k W (SC-107C) SOT-353 (SC-88)

(4) l Features (5) (6)

1) Built-In Biasing Resistors, R1 = R2 = 10k W.

2) Two DTA114E chips in one package. (1) 3) Built-in bias resistors enable the configuration of

IMB11A an inverter circuit without connecting external SOT-457 (SC-74)

input resistors (see inner circuit). 4) The bias resistors consist of thin-film resistors

with complete isolation to allow negative biasing l Inner circuit

of the input. They also have the advantage of

EMB11 / UMB11N IMB11A

completely eliminating parasitic effects.

OUT IN GND

OUT IN GND

5) Only the on/off conditions need to be set for (6) (5) (4)

operation, making the circuit design easy. 6) Lead Free/Ro HS Compliant.

l Application

Inverter circuit, Interface circuit, Driver circuit GND IN OUT

GND IN OUT

l Packaging specifications

Package Basic

Taping Reel size Tape width

Part No. Package size ordering Marking

code (mm) (mm)

(mm) unit (pcs)

EMB11 EMT6 T2R 8,000 B118 UMB11N UMT6 TR 3,000 B11 IMB11A SMT6 T108 3,000 B11

www.rohm.com © 2012 ROHM Co., Ltd. All rights reserved. 1/7 2012.06 - Rev.B

Page Summary Contents For ROHM EMB11, UMB11N, IMB11A Data Sheet User Manual

Page 1 EMB11 / UMB11N / IMB11A Datasheet PNP -100m A -50V Complex Digital Transistors (Bias Resistor Built-in Transistors) l Outline Parameter Tr1 and Tr2 EMT6 UMT6 VCC -50V (5) (1) (1) IC(MAX.) -100m A (2) ...
Page 2 Data Sheet EMB11 / UMB11N / IMB11A l Absolute maximum ratings (Ta = 25°C) <For Tr1 and Tr2 in common> Parameter Symbol Values Unit Supply voltage VCC -50 Input voltage VIN -40 to +10 Output curr...
Page 3 Data Sheet EMB11 / UMB11N / IMB11A IN [V l Electrical characteristic curves(Ta = 25°C) Fig.1 Input voltage vs. output current Fig.2 Output current vs. input voltage (ON characteristics) (OFF character...
Page 4 Data Sheet EMB11 / UMB11N / IMB11A l Electrical characteristic curves(Ta = 25°C) Fig.5 Output voltage vs. output current OUTPUT CURRENT : IO [A] www.rohm.com © 2012 ROHM Co., Ltd. All rights reserved....
Page 5 Data Sheet EMB11 / UMB11N / IMB11A l Dimensions (Unit : mm) Patterm of terminal position areas MILIMETERS INCHES MIN MAX MIN MAX HE 1.50 1.70 0.059 0.067 Lp 0.35 0.014 MILIMETERS INCHES MIN MAX MIN MA...
Page 6 Data Sheet EMB11 / UMB11N / IMB11A l Dimensions (Unit : mm) Patterm of terminal position areas MILIMETERS INCHES MIN MAX MIN MAX 0.80 1.00 0.039 HE 2.00 2.20 0.079 0.087 L1 0.20 0.50 0.008 0.02 Lp 0.2...
Page 7 Data Sheet EMB11 / UMB11N / IMB11A l Dimensions (Unit : mm) Patterm of terminal position areas MILIMETERS INCHES MIN MAX MIN MAX 1.00 1.30 0.039 0.051 HE 2.60 3.00 0.102 0.118 L1 0.30 0.60 0.012 0.024...
Page 8 Notice No copying or reproduction of this document, in part or in whole, is permitted without the consent of ROHM Co.,Ltd. The content specified herein is subject to change for improvement without not...
