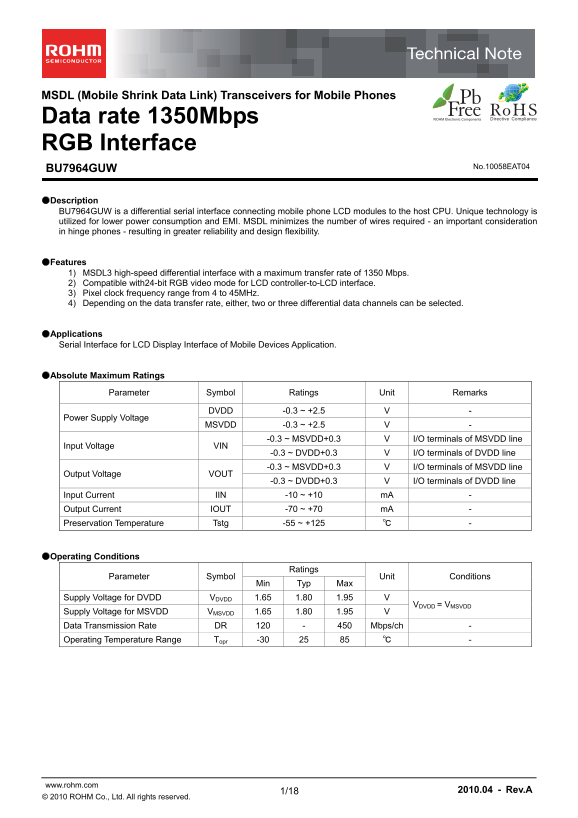

Page 1 Text Content
MSDL (Mobile Shrink Data Link) Transceivers for Mobile Phones
Data rate 1350Mbps RGB Interface
No.10058EAT04
BU7964GUW
●Description BU7964GUW is a differential serial interface connecting mobile phone LCD modules to the host CPU. Unique technology is utilized for lower power consumption and EMI. MSDL minimizes the number of wires required - an important consideration in hinge phones - resulting in greater reliability and design flexibility.
●Features 1) MSDL3 high-speed differential interface with a maximum transfer rate of 1350 Mbps. 2) Compatible with24-bit RGB video mode for LCD controller-to-LCD interface. 3) Pixel clock frequency range from 4 to 45MHz. 4) Depending on the data transfer rate, either, two or three differential data channels can be selected.
●Applications Serial Interface for LCD Display Interface of Mobile Devices Application.
●Absolute Maximum Ratings
Parameter Symbol Ratings Unit Remarks
DVDD -0.3 ~ +2.5 V -
Power Supply Voltage
MSVDD -0.3 ~ +2.5 V -
-0.3 ~ MSVDD+0.3 V I/O terminals of MSVDD line
Input Voltage VIN
-0.3 ~ DVDD+0.3 V I/O terminals of DVDD line -0.3 ~ MSVDD+0.3 V I/O terminals of MSVDD line
Output Voltage VOUT
-0.3 ~ DVDD+0.3 V I/O terminals of DVDD line
Input Current IIN -10 ~ +10 m A - Output Current IOUT -70 ~ +70 m A - Preservation Temperature Tstg -55 ~ +125 ℃ -
●Operating Conditions
Ratings
Parameter Symbol Unit Conditions
Min Typ Max
Supply Voltage for DVDD VDVDD 1.65 1.80 1.95 V
VDVDD = VMSVDD
Supply Voltage for MSVDD VMSVDD 1.65 1.80 1.95 V Data Transmission Rate DR 120 - 450 Mbps/ch Operating Temperature Range Topr -30 25 85 ℃ -
www.rohm.com 2010.04 - Rev.A
© 2010 ROHM Co., Ltd. All rights reserved.
