ROHM DTD114EK Data Manual
Summary
This specialized digital transistor is engineered for efficient use in inverter, interface, and driver applications up to 50V and 500mA. Its standout feature is the integrated bias resistors, which significantly simplifies circuit design by eliminating the need for external components while minimizing parasitic effects. The manual provides detailed technical specifications, including absolute maximum ratings, electrical characteristics (IO/II ratios), and application guidelines necessary for electrical engineers designing streamlined power conversion and switching circuits.

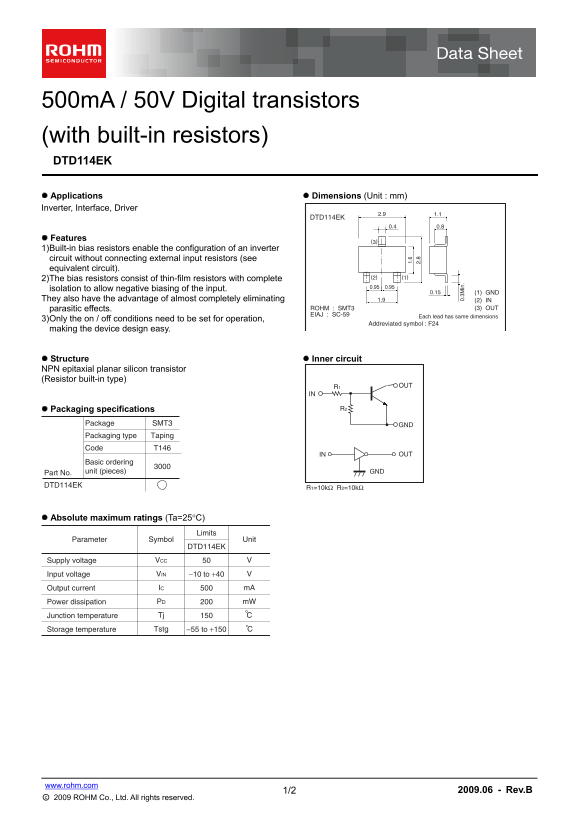

Page 1 Text Content
500m A / 50V Digital transistors (with built-in resistors) DTD114EK Applications Dimensions (Unit : mm) Inverter, Interface, Driver
DTD114EK
Features
1) Built-in bias resistors enable the configuration of an inverter circuit without connecting external input resistors (see equivalent circuit).
2) The bias resistors consist of thin-film resistors with complete
isolation to allow negative biasing of the input.
0.15 (1) GND
They also have the advantage of almost completely eliminating 1.9 (2) IN
parasitic effects. (3) OUTROHM : SMT3
EIAJ : SC-59 Each lead has same dimensions
3) Only the on / off conditions need to be set for operation,
Addreviated symbol : F24
making the device design easy.
Structure Inner circuit NPN epitaxial planar silicon transistor (Resistor built-in type)
R1 OUT
Packaging specifications R2 1.
Package SMT3 GND Packaging type Taping Code T146
IN OUT
Basic ordering 0. 3M in
Part No. unit (pieces) GND
DTD114EK
Absolute maximum ratings (Ta=25C)
Limits
Parameter Symbol Unit
DTD114EK
Supply voltage VCC
Input voltage VIN −10 to +40
Output current IC m A
Power dissipation PD m W
Junction temperature Tj
Storage temperature Tstg −55 to +150
www.rohm.com
1/2 2009.06 - Rev.B
○c 2009 ROHM Co., Ltd. All rights reserved.
Page Summary Contents For ROHM DTD114EK Data Manual
Manual Details
| Brand | ROHM |
|---|---|
| Pages | 3 |
| File Size | 159.62 KB |
| Published | June 02, 2026 |
Enter the captcha to get the download link:
Frequently Asked Questions
Can the DTD114EK be configured as an inverter circuit?
Yes, it has built-in bias resistors that enable inverter circuit configuration without needing external input resistors.
What are the absolute maximum ratings for the V Supply voltage?
The supply voltage (VCC) must limit to 50V. The input voltage (VIN) range is -10 to +40V.
Are there limitations on where this product can be used?
It is not designed for equipment requiring extremely high reliability, such as medical or aerospace machinery.
