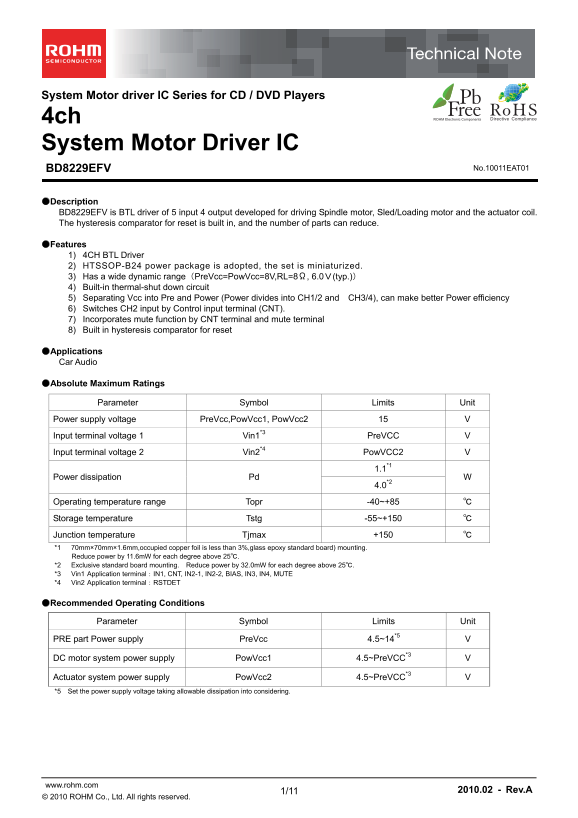

Page 1 Text Content
System Motor driver IC Series for CD / DVD Players
4ch System Motor Driver IC
BD8229EFV No.10011EAT01
●Description BD8229EFV is BTL driver of 5 input 4 output developed for driving Spindle motor, Sled/Loading motor and the actuator coil. The hysteresis comparator for reset is built in, and the number of parts can reduce.
●Features 1) 4CH BTL Driver 2) HTSSOP-B24 power package is adopted, the set is miniaturized. 3) Has a wide dynamic range（Pre Vcc=Pow Vcc=8V,RL=8Ω, 6.0Ｖ(typ.)） 4) Built-in thermal-shut down circuit 5) Separating Vcc into Pre and Power (Power divides into CH1/2 and CH3/4), can make better Power efficiency 6) Switches CH2 input by Control input terminal (CNT). 7) Incorporates mute function by CNT terminal and mute terminal 8) Built in hysteresis comparator for reset
●Applications Car Audio
●Absolute Maximum Ratings
Parameter Symbol Limits Unit
Power supply voltage Pre Vcc,Pow Vcc1, Pow Vcc2 15 V Input terminal voltage 1 Vin1*3 Pre VCC V Input terminal voltage 2 Vin2*4 Pow VCC2 V
Power dissipation Pd
Operating temperature range Topr -40~+85 ℃ Storage temperature Tstg -55~+150 ℃ Junction temperature Tjmax +150 ℃ *1 70mm×70mm×1.6mm,occupied copper foil is less than 3%,glass epoxy standard board) mounting. Reduce power by 11.6m W for each degree above 25℃. *2 Exclusive standard board mounting. Reduce power by 32.0m W for each degree above 25℃. *3 Vin1 Application terminal：IN1, CNT, IN2-1, IN2-2, BIAS, IN3, IN4, MUTE *4 Vin2 Application terminal：RSTDET
●Recommended Operating Conditions
Parameter Symbol Limits Unit
PRE part Power supply Pre Vcc 4.5~14*5 V
DC motor system power supply Pow Vcc1 4.5~Pre VCC*3 V
Actuator system power supply Pow Vcc2 4.5~Pre VCC*3 V *5 Set the power supply voltage taking allowable dissipation into considering.
www.rohm.com 2010.02 - Rev.A
© 2010 ROHM Co., Ltd. All rights reserved.
