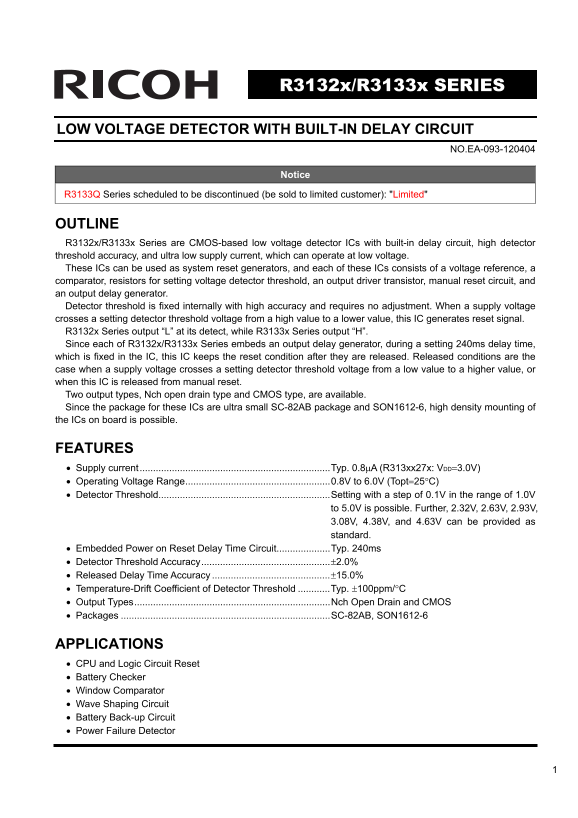

R3132x/R3133x SERIES

LOW VOLTAGE DETECTOR WITH BUILT-IN DELAY CIRCUIT

NO.EA-093-120404

Notice

R3133Q Series scheduled to be discontinued (be sold to limited customer): "Limited"

OUTLINE R3132x/R3133x Series are CMOS-based low voltage detector ICs with built-in delay circuit, high detector threshold accuracy, and ultra low supply current, which can operate at low voltage. These ICs can be used as system reset generators, and each of these ICs consists of a voltage reference, a comparator, resistors for setting voltage detector threshold, an output driver transistor, manual reset circuit, and an output delay generator. Detector threshold is fixed internally with high accuracy and requires no adjustment. When a supply voltage crosses a setting detector threshold voltage from a high value to a lower value, this IC generates reset signal. R3132x Series output “L” at its detect, while R3133x Series output “H”. Since each of R3132x/R3133x Series embeds an output delay generator, during a setting 240ms delay time, which is fixed in the IC, this IC keeps the reset condition after they are released. Released conditions are the case when a supply voltage crosses a setting detector threshold voltage from a low value to a higher value, or when this IC is released from manual reset. Two output types, Nch open drain type and CMOS type, are available. Since the package for these ICs are ultra small SC-82AB package and SON1612-6, high density mounting of the ICs on board is possible.

FEATURES • Supply current .......................................................................Typ. 0.8μA (R313xx27x: VDD=3.0V) • Operating Voltage Range......................................................0.8V to 6.0V (Topt=25°C) • Detector Threshold................................................................Setting with a step of 0.1V in the range of 1.0V

to 5.0V is possible. Further, 2.32V, 2.63V, 2.93V, 3.08V, 4.38V, and 4.63V can be provided as standard.

• Embedded Power on Reset Delay Time Circuit....................Typ. 240ms • Detector Threshold Accuracy................................................±2.0% • Released Delay Time Accuracy ............................................±15.0% • Temperature-Drift Coefficient of Detector Threshold ............Typ. ±100ppm/°C • Output Types.........................................................................Nch Open Drain and CMOS • Packages ..............................................................................SC-82AB, SON1612-6

APPLICATIONS • CPU and Logic Circuit Reset • Battery Checker • Window Comparator • Wave Shaping Circuit • Battery Back-up Circuit • Power Failure Detector

Page Summary Contents For RICOH R3132x R3133x SERIES Owner's Manual User Guide

Page 1 R3132x/R3133x SERIES LOW VOLTAGE DETECTOR WITH BUILT-IN DELAY CIRCUIT NO.EA-093-120404 Notice R3133Q Series scheduled to be discontinued (be sold to limited customer): "Limited" OUTLINE R313...
Page 2 BLOCK DIAGRAMS R3132xxx EA Nch Open Drain Output R3132xxx EC CMOS Output VDD MR VDD MR Delay Delay Circuit Circuit Vref Vref GND GND R3133xxx EA Nch Open Drain Output R3133xxx EC CMOS Output VDD MR VD...
Page 3 SELECTION GUIDE The package type, the detector threshold, the output type and the taping type for the ICs can be selected at the users’ request. Product Name Package Quantity per Reel Pb Free Halogen ...
Page 4 PIN CONFIGURATIONS • SON1612-6 • SC-82AB (mark side) (mark side) PIN DESCRIPTIONS • SON1612-6 Pin No Symbol Pin Description 1 VDD Input Pin 2 GND Ground Pin Manual Reset Input Pin 3 MR Active at “L” i...
Page 5 ABSOLUTE MAXIMUM RATINGS Symbol Item Rating Unit VDD Supply Voltage 6.5 V Output Voltage (Nch Open Drain Output) VSS−0.3 to 6.5 Output Voltage (CMOS Output) VSS−0.3 to VDD+0.3 VMR Input Voltage VSS−0....
Page 6 ELECTRICAL CHARACTERISTICS Topt=25°C Symbol Item Test Conditions Min. Typ. Max. Unit Topt=25°C 0.75 6.0 −40°C≤Topt≤85°C 0.85 6.0 VDD Operating Voltage Topt=25°C 0.80 6.0 −40°C≤Topt≤85°C 0.90 6.0 VDET ...
Page 7 • "H" Output Voltage (VOH) table Topt=25°C Products Test Conditions Min. Typ. Max. Unit VDET<1.2V VDD=VDET+0.1V, IOH=−50μA 1.2V≤VDET<2.0V VDD=VDET+0.1V, IOH=−150μA R3132xxx EC 0.8×VDD ...
Page 8 DETECTOR THRESHOLD SPECIFICATIONS BY PART NUMBER • R3132x Operating Voltage Detector Threshold Supply Current 1 Part Number VDD[V] VDET[V] ISS1[μA] Conditions Min. Conditions Min. Min. Typ. Max. Condi...
Page 9 Supply Current 2 Supply Current 3 "H" Output Voltage ISS2[μA] ISS3[μA] VOH[V] Conditions Typ. Max. Conditions Typ. Max. Conditions Min. VDD=VDET+0.1V IOH=−500μA VDD=VDET+0.1V 0.8× IOUT=0A 0....
Page 10 MR pin "L" Input "L" Output Voltage MR pin "H" Input Voltage Voltage MR pin pull-up resistance Part Number VOL[V] VIH[V] VIL[V] RMR[MΩ] Conditions Max. Conditions Min. Co...
Page 11 Output Delay Time for Release Detector Threshold Temperature Coefficient Tdelay[ms] ΔVDET/ΔTopt[ppm/°C] Conditions Min. Typ. Max. Conditions Typ. VDD=0.8V→ VDET+1.0V 204 240 276 −40°C≤Topt≤85°C ±100 T...
Page 12 Operating Voltage Detector Threshold Supply Current 1 Part Number VDD[V] VDET[V] ISS1[μA] Conditions Min. Conditions Min. Min. Typ. Max. Conditions Typ. Max. R3133x23Ex2 2.274 2.320 2.366 R3133x26Ex3 ...
Page 13 Supply Current 2 Supply Current 3 "H" Output Voltage ISS2[μA] ISS3[μA] VOH[V] Conditions Typ. Max. Conditions Typ. Max. Conditions Min. VDD=VDET−0.1V IOH=−500μA VDD=VDET+0.1V 0.8× IOUT=0A 0....
Page 14 MR pin "L" Input "L" Output Voltage MR pin "H" Input Voltage Voltage MR pin pull-up resistance Part Number VOL[V] VIH[V] VIL[V] RMR[MΩ] Conditions Max. Conditions Min. Co...
Page 15 Output Delay Time for Release Detector Threshold Temperature Coefficient Tdelay[ms] ΔVDET/ΔTopt[ppm/°C] Conditions Min. Typ. Max. Conditions Typ. VDD=0.8V→ VDET+1.0V 204 240 276 −40°C≤Topt≤85°C ±100 T...
Page 16 OPERATION • Operation of R3132x Series Delay Circuit Comparator Nch Rb Block Diagram • CMOS Output Type: OUT pin is connected to the drain of Nch Tr. and Pch Tr. in this IC. • Nch Open Drain Output Ty...
Page 17 • Operation of R3133x Series Delay Circuit Comparator Nch Rb Block Diagram • CMOS Output Type: Out pin is connected to the drain of Nch Tr. and Pch Tr. in this IC. • Nch Open Drain Output Type: Out pi...
Page 18 TECHNICAL NOTES Pu ls id th ur in un de r V ET (μ s) When the IC is released, if a large pulse (glitch) which crosses the detector threshold voltage is in, the IC may not maintain the released conditi...
Page 19 Application Notes VDD VDD VDD VDD R2 R313xx R313xx Series OUT Series GND GND Figure A Figure B The connection such as Figure A and Figure B may cause the loop oscillation because of the cross conducti...
Page 20 R3132x/R3133x up pl ur re nt IS (μ 5V ISS VIN MR IMR R313xx VIN R313xx Series Series MR GNDVMR MR pin Input Voltage Test Circuit MR pin Pull-up Resistance Test Circuit (CMOS Output type; pull-up part ...
Page 21 et ec to r T hr es ho ld T( et ec to r T hr es ho ld T( up pl ur re nt IS (μ R3132x27Ex/R3133x27Ex R3132x48Ex/R3133x48Ex Topt=85°C Topt=85°C Input Voltage VIN(V) Input Voltage VIN(V) 2) Detector Thres...
Page 22 ch riv er ut pu t C ur re nt T( ch riv er ut pu t C ur re nt ch riv er ut pu t C ur re nt IO T( IO T( 3) Nch Driver Output Current vs. VDS (Topt=25°C) R3132x10Ex R3132x16Ex VDD=1.0V VDD=0.99V VDS(V) V...
Page 23 ch riv er ut pu t C ur re nt ch riv er ut pu t C ur re nt ch riv er ut pu t C ur re nt IO T( IO T( IO T( R3133x27Ex R3133x48Ex VDD=6.0V VDD=6.0V 5.0V 1.5 2.52 30.5 1.5 2.52 30.5 VDS(V) VDS(V) 4) Nch D...
Page 24 R3132x/R3133x ch riv er ut pu t C ur re nt ch riv er ut pu t C ur re nt ch riv er ut pu t C ur re nt IO T( IO T( IO T( R3133x10Ex R3133x16Ex Topt=-40°C Topt=-40°C 25°C 25°C 85°C Input Voltage VIN(V) I...
Page 25 ch riv er ut pu t C ur re nt ch riv er ut pu t C ur re nt ch riv er ut pu t C ur re nt IO T( IO T( IO T( R3132x27Ex R3132x48Ex VDS=-2.1V VDS=-2.1V Input Voltage VIN(V) Input Voltage VIN(V) R3133x10Ex ...
Page 26 ow er -o es et el ay im ut pu t D el ay im at et ec tio od ut pu t D el ay im at et ec tio od Td el ay (m s) Tr st (μ s) Tr st (μ s) 6) Output Delay Time at Detection Mode vs. Temperature R3132x10Ex/R...
Page 27 ow er -o es et el ay im Td el ay (m s) R3132x27Ex/R3133x27Ex R3132x48Ex/R3133x48Ex Temperature Topt(°C) Temperature Topt(°C) ow er -o es et el ay im Td el ay (m s)
Page 28 1. The products and the product specifications described in this document are subject to change or discontinuation of production without notice for reasons such as improvement. Therefore, before decid...
