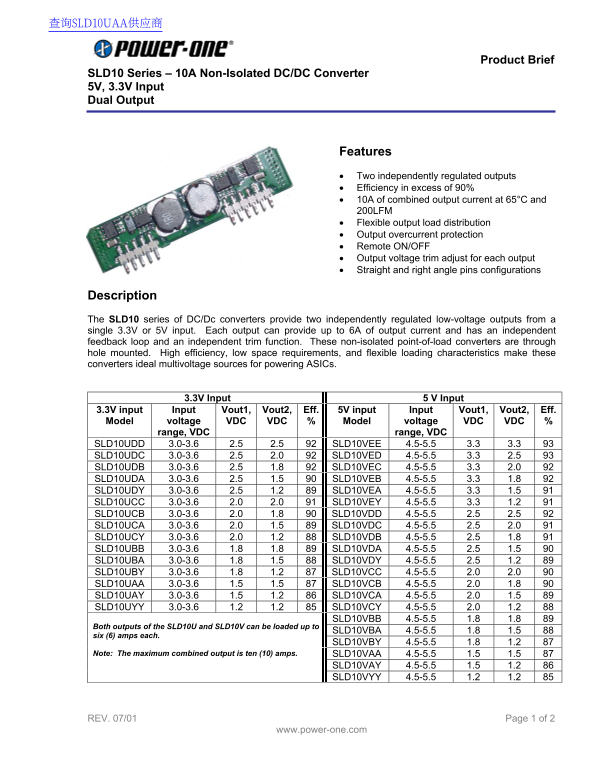

SLD10 Series – 10A Non-Isolated DC/DC Converter 5V, 3.3V Input Dual Output
Features • Two independently regulated outputs • Efficiency in excess of 90% • 10A of combined output current at 65°C and 200LFM • Flexible output load distribution • Output overcurrent protection • Remote ON/OFF • Output voltage trim adjust for each output • Straight and right angle pins configurations
Description The SLD10 series of DC/Dc converters provide two independently regulated low-voltage outputs from a single 3.3V or 5V input. Each output can provide up to 6A of output current and has an independent feedback loop and an independent trim function. These non-isolated point-of-load converters are through hole mounted. High efficiency, low space requirements, and flexible loading characteristics make these converters ideal multivoltage sources for powering ASICs.
3.3V Input 5 V Input
3.3V input Input Vout1, Vout2, Eff. 5V input Input Vout1, Vout2, Eff. Model voltage VDC VDC Model voltage VDC VDC
range, VDC range, VDC
SLD10UDD 3.0-3.6 2.5 2.5 SLD10VEE 4.5-5.5 3.3 3.3 SLD10UDC 3.0-3.6 2.5 2.0 SLD10VED 4.5-5.5 3.3 2.5 SLD10UDB 3.0-3.6 2.5 1.8 SLD10VEC 4.5-5.5 3.3 2.0 SLD10UDA 3.0-3.6 2.5 1.5 SLD10VEB 4.5-5.5 3.3 1.8 SLD10UDY 3.0-3.6 2.5 1.2 SLD10VEA 4.5-5.5 3.3 1.5 SLD10UCC 3.0-3.6 2.0 2.0 SLD10VEY 4.5-5.5 3.3 1.2 SLD10UCB 3.0-3.6 2.0 1.8 SLD10VDD 4.5-5.5 2.5 2.5 SLD10UCA 3.0-3.6 2.0 1.5 SLD10VDC 4.5-5.5 2.5 2.0 SLD10UCY 3.0-3.6 2.0 1.2 SLD10VDB 4.5-5.5 2.5 1.8 SLD10UBB 3.0-3.6 1.8 1.8 SLD10VDA 4.5-5.5 2.5 1.5 SLD10UBA 3.0-3.6 1.8 1.5 SLD10VDY 4.5-5.5 2.5 1.2 SLD10UBY 3.0-3.6 1.8 1.2 SLD10VCC 4.5-5.5 2.0 2.0 SLD10UAA 3.0-3.6 1.5 1.5 SLD10VCB 4.5-5.5 2.0 1.8 SLD10UAY 3.0-3.6 1.5 1.2 SLD10VCA 4.5-5.5 2.0 1.5 SLD10UYY 3.0-3.6 1.2 1.2 SLD10VCY 4.5-5.5 2.0 1.2
SLD10VBB 4.5-5.5 1.8 1.8
Both outputs of the SLD10U and SLD10V can be loaded up to
SLD10VBA 4.5-5.5 1.8 1.5
six (6) amps each.
SLD10VBY 4.5-5.5 1.8 1.2
Note: The maximum combined output is ten (10) amps. SLD10VAA 4.5-5.5 1.5 1.5
SLD10VAY 4.5-5.5 1.5 1.2 SLD10VYY 4.5-5.5 1.2 1.2
REV. 07/01 Page 1 of 2
www.power-one.com
