This high-capacity plug terminal component provides robust electrical interconnection for industrial applications, rated up to 125A and 1000V. The comprehensive manual details critical technical specifications, including precise dimensioning, diverse connection guidelines for solid and stranded conductors, and required stripping lengths. Essential for professional engineers and technicians designing durable, high-power control and distribution systems that require reliable termination and secure connections.
Page 1 Text Content

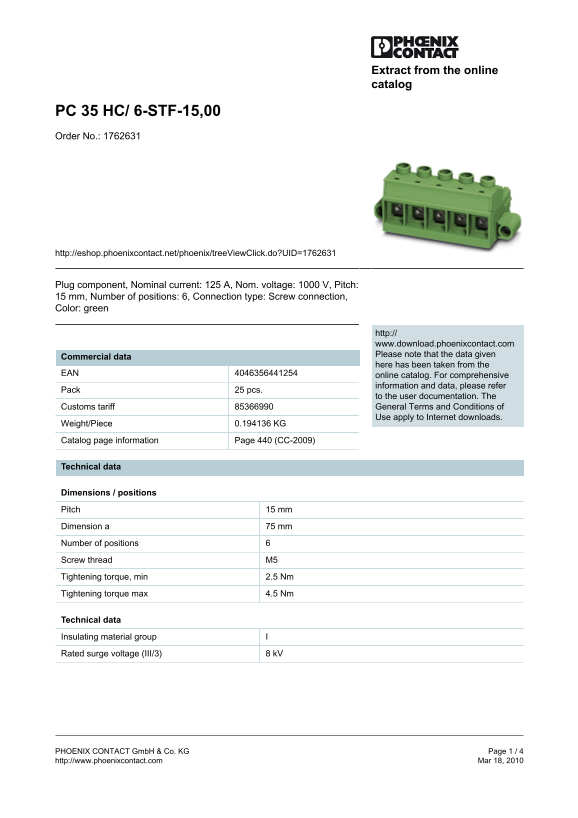

Extract from the online catalog
PC 35 HC/ 6-STF-15,00 Order No.: 1762631
http://eshop.phoenixcontact.net/phoenix/tree View Click.do?UID=1762631
Plug component, Nominal current: 125 A, Nom. voltage: 1000 V, Pitch: 15 mm, Number of positions: 6, Connection type: Screw connection, Color: green
http:// www.download.phoenixcontact.com Please note that the data given
Commercial data
here has been taken from the
EAN online catalog. For comprehensive
information and data, please refer
Pack 25 pcs.
to the user documentation. The Customs tariff General Terms and Conditions of Use apply to Internet downloads.
Weight/Piece 0.194136 KG Catalog page information Page 440 (CC-2009)
Technical data
Dimensions / positions Pitch 15 mm Dimension a 75 mm Number of positions Screw thread M5 Tightening torque, min 2.5 Nm Tightening torque max 4.5 Nm
Technical data Insulating material group Rated surge voltage (III/3) 8 k V
PHOENIX CONTACT Gmb H & Co. KG Page 1 / 4 http://www.phoenixcontact.com Mar 18, 2010
Page Summary Contents For Phoenix Contact PC 35 HC 6-STF-15,00 Owner's Manual User Guide
Manual Details
| Brand | Phoenix |
|---|---|
| Pages | 4 |
| File Size | 95.19 KB |
| Published | May 31, 2026 |
Enter the captcha to get the download link:
Frequently Asked Questions
What is the nominal current and voltage rating of this terminal block?
The nominal current is 125 A, and the nominal voltage is 1000 V.
What are the allowed size ranges for solid conductors?
Solid conductors must have a minimum cross-section of 0.5 mm² up to a maximum of 35 mm².
How should I tighten the component during installation?
The required tightening torque ranges from a minimum of 2.5 Nm to a maximum of 4.5 Nm.
What is the rated surge voltage level when used in III/3 or III/2 applications?
The rated surge voltage for both are specified as 8 kV.
