Phoenix Contact - PC 35 HC 4-STF-SH-15,00 Data Handbook
Summary
Essential electrical connection plug designed for high-reliability industrial applications. This robust component features a nominal current rating of 125 A and operates at 1000 V, ensuring secure connections in demanding environments. The accompanying documentation provides complete technical specifications, including detailed wiring limits (both solid and stranded), dimensions, and installation guidelines. It is the indispensable resource for professional electricians, engineers, and automation technicians designing or maintaining electrical control panels.

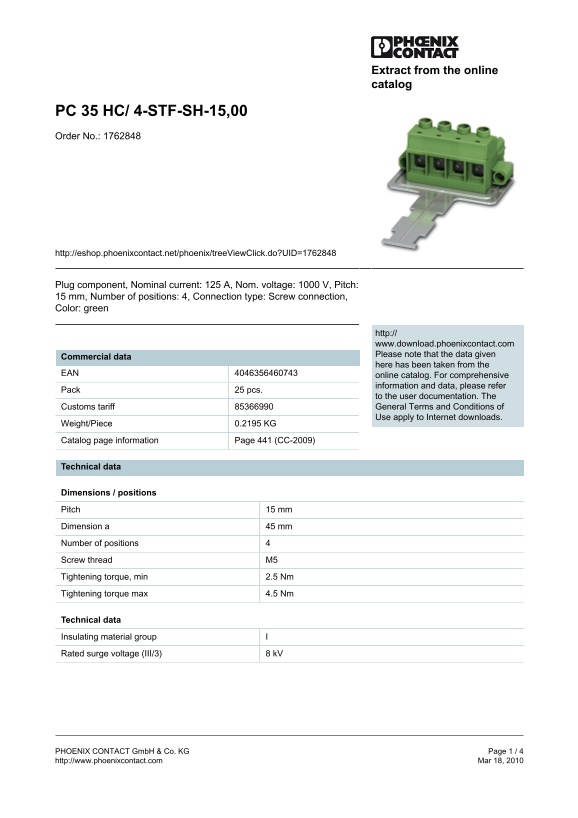

Page 1 Text Content
Extract from the online catalog
PC 35 HC/ 4-STF-SH-15,00 Order No.: 1762848
http://eshop.phoenixcontact.net/phoenix/tree View Click.do?UID=1762848
Plug component, Nominal current: 125 A, Nom. voltage: 1000 V, Pitch: 15 mm, Number of positions: 4, Connection type: Screw connection, Color: green
http:// www.download.phoenixcontact.com Please note that the data given
Commercial data
here has been taken from the
EAN online catalog. For comprehensive
information and data, please refer
Pack 25 pcs.
to the user documentation. The Customs tariff General Terms and Conditions of Use apply to Internet downloads.
Weight/Piece 0.2195 KG Catalog page information Page 441 (CC-2009)
Technical data
Dimensions / positions Pitch 15 mm Dimension a 45 mm Number of positions Screw thread M5 Tightening torque, min 2.5 Nm Tightening torque max 4.5 Nm
Technical data Insulating material group Rated surge voltage (III/3) 8 k V
PHOENIX CONTACT Gmb H & Co. KG Page 1 / 4 http://www.phoenixcontact.com Mar 18, 2010
Page Summary Contents For Phoenix Contact - PC 35 HC 4-STF-SH-15,00 Data Handbook
Manual Details
| Brand | Phoenix |
|---|---|
| Pages | 4 |
| File Size | 99.33 KB |
| Published | May 31, 2026 |
Enter the captcha to get the download link:
Frequently Asked Questions
What are the nominal electrical specifications of this plug component?
It features a Nominal Voltage (U) of 1000 V and a maximum load current capacity of 125 A.
What is the appropriate tightening torque range when installing the device?
The required tightening torque must be maintained between a minimum of 2.5 Nm and a maximum of 4.5 Nm.
What ranges of conductors are compatible with this plug?
Solid conductors can range from a minimum of 0.5 mm² up to a maximum of 35 mm².
What is the rated surge voltage for protection levels III/2 and II/2?
The component has a constant rated surge voltage (III/2) and (II/2) of 8 kV.
