Phoenix Contact PC 35 HC 2-GF-15.00 Data Sheet
Summary
This industrial terminal block is engineered for secure and reliable electrical connections within demanding automation and control systems. The manual provides comprehensive technical data, featuring detailed dimensioned drawings, electrical specifications (rated up to 1000 V and 125 A), and installation guidelines. It serves as an essential resource for electrical engineers, PCB designers, and industrial automation professionals requiring precise performance metrics and compliant integration information when mounting this component into larger circuit boards or machinery.
Page 1 Text Content
Extract from the online catalog

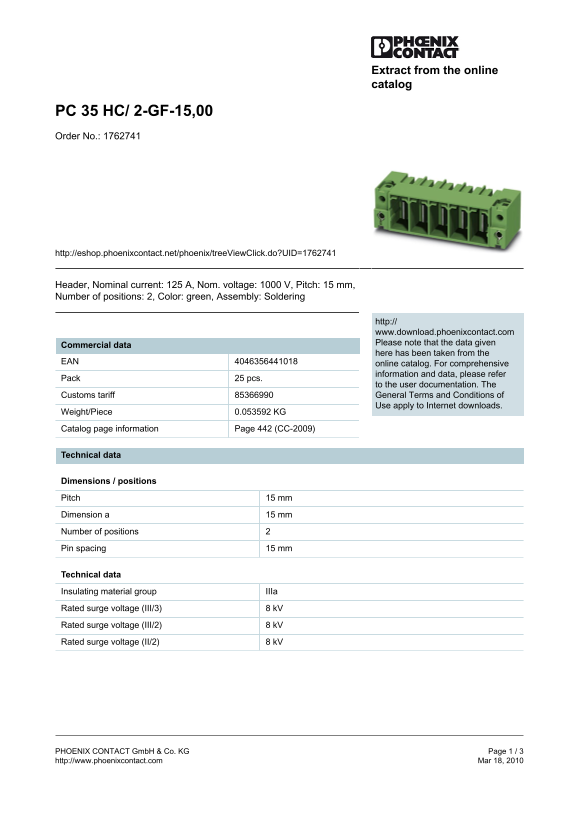

PC 35 HC/ 2-GF-15,00 Order No.: 1762741
http://eshop.phoenixcontact.net/phoenix/tree View Click.do?UID=1762741
Header, Nominal current: 125 A, Nom. voltage: 1000 V, Pitch: 15 mm, Number of positions: 2, Color: green, Assembly: Soldering
http:// www.download.phoenixcontact.com Please note that the data given
Commercial data
here has been taken from the
EAN online catalog. For comprehensive
information and data, please refer
Pack 25 pcs.
to the user documentation. The Customs tariff General Terms and Conditions of Use apply to Internet downloads.
Weight/Piece 0.053592 KG Catalog page information Page 442 (CC-2009)
Technical data
Dimensions / positions Pitch 15 mm Dimension a 15 mm Number of positions Pin spacing 15 mm
Technical data Insulating material group IIIa Rated surge voltage (III/3) 8 k V Rated surge voltage (III/2) 8 k V Rated surge voltage (II/2) 8 k V
PHOENIX CONTACT Gmb H & Co. KG Page 1 / 3 http://www.phoenixcontact.com Mar 18, 2010
