Phoenix Contact PC 35 HC 5-GF-15.00 Data Sheet
Summary
This high-performance header component features five solid positions with a 15mm pitch, rated for up to 1000V and 125A current capacity in a soldering assembly. The accompanying documentation is essential reading for electrical engineers and PCB designers, providing detailed technical data, precise dimensions, comprehensive voltage ratings (II/2 & III/2), and geometric diagrams—including drilling and solder pad plans—to ensure accurate circuit implementation.
Page 1 Text Content
Extract from the online catalog

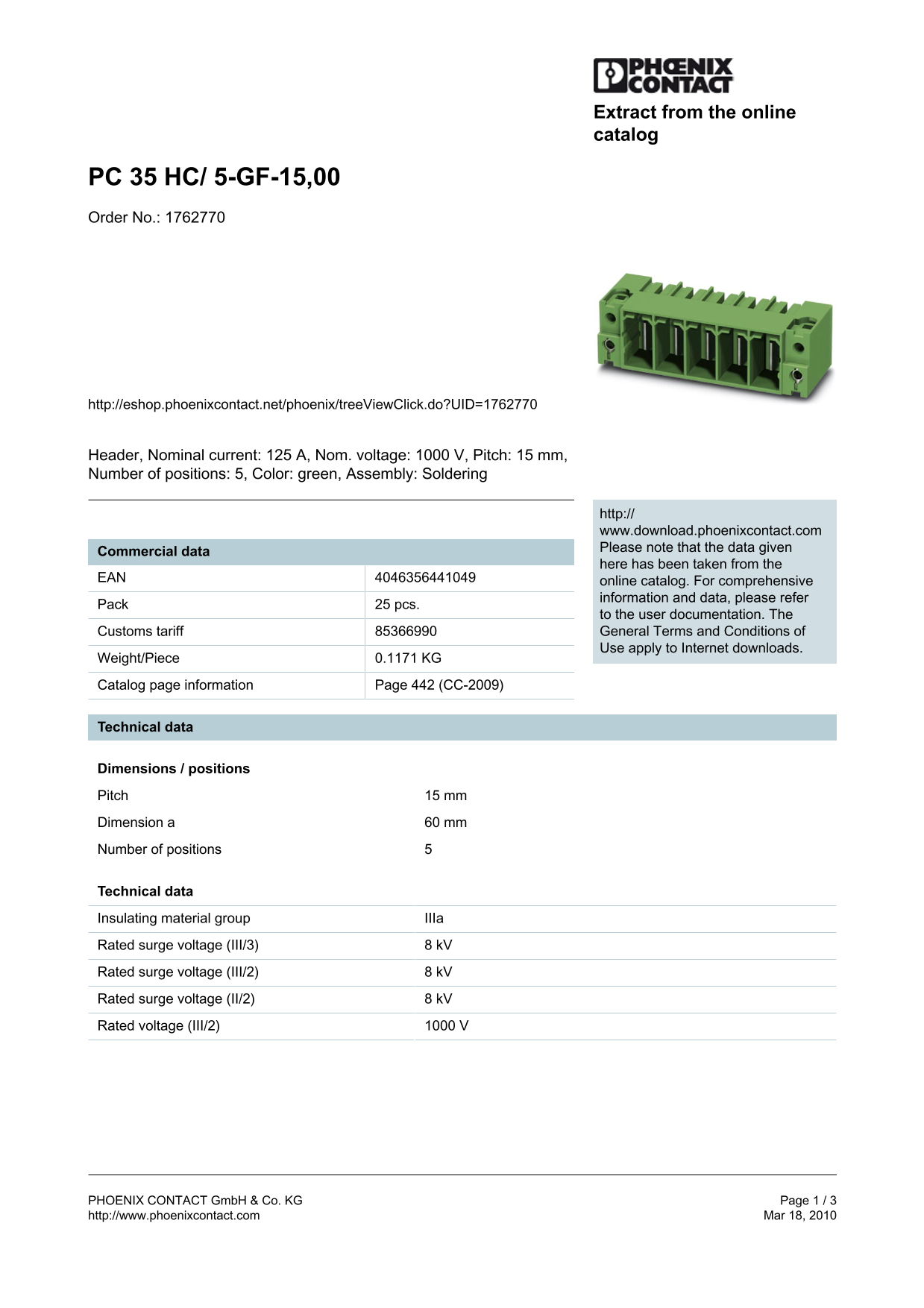

PC 35 HC/ 5-GF-15,00 Order No.: 1762770
http://eshop.phoenixcontact.net/phoenix/tree View Click.do?UID=1762770
Header, Nominal current: 125 A, Nom. voltage: 1000 V, Pitch: 15 mm, Number of positions: 5, Color: green, Assembly: Soldering
http:// www.download.phoenixcontact.com Please note that the data given
Commercial data
here has been taken from the
EAN online catalog. For comprehensive
information and data, please refer
Pack 25 pcs.
to the user documentation. The Customs tariff General Terms and Conditions of Use apply to Internet downloads.
Weight/Piece 0.1171 KG Catalog page information Page 442 (CC-2009)
Technical data
Dimensions / positions Pitch 15 mm Dimension a 60 mm Number of positions
Technical data Insulating material group IIIa Rated surge voltage (III/3) 8 k V Rated surge voltage (III/2) 8 k V Rated surge voltage (II/2) 8 k V Rated voltage (III/2) 1000 V
PHOENIX CONTACT Gmb H & Co. KG Page 1 / 3 http://www.phoenixcontact.com Mar 18, 2010
