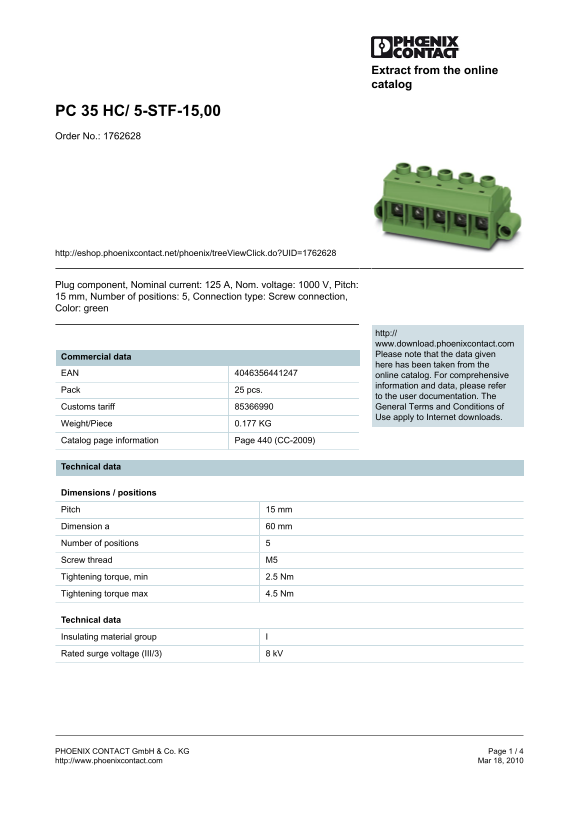

PC 35 HC/ 5-STF-15,00 Order No.: 1762628
http://eshop.phoenixcontact.net/phoenix/tree View Click.do?UID=1762628
Plug component, Nominal current: 125 A, Nom. voltage: 1000 V, Pitch: 15 mm, Number of positions: 5, Connection type: Screw connection, Color: green
http:// www.download.phoenixcontact.com Please note that the data given
Commercial data
here has been taken from the
EAN online catalog. For comprehensive
information and data, please refer
Pack 25 pcs.
to the user documentation. The Customs tariff General Terms and Conditions of Use apply to Internet downloads.
Weight/Piece 0.177 KG Catalog page information Page 440 (CC-2009)
Technical data
Dimensions / positions Pitch 15 mm Dimension a 60 mm Number of positions Screw thread M5 Tightening torque, min 2.5 Nm Tightening torque max 4.5 Nm
Technical data Insulating material group Rated surge voltage (III/3) 8 k V
PHOENIX CONTACT Gmb H & Co. KG Page 1 / 4 http://www.phoenixcontact.com Mar 18, 2010
